Start here

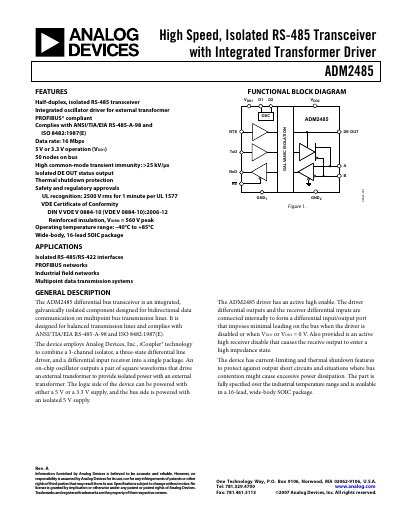

Analog Devices ADM2485 High Speed Isolated RS-485 Transceiver Datasheet
The ADM2485 is a galvanically isolated RS‑485/RS‑422 transceiver that combines a three‑channel isolator, a three‑state differential line driver, and a differential input receiver in a single 16‑lead SOIC package. It operates from a 3.3 V or 5 V logic supply and provides an isolated 5 V bus side supply.
Designed for industrial field networks such as PROFIBUS, the device offers up to 50 nodes on a bus, high common‑mode transient immunity (>25 kV/μs), and thermal shutdown protection. It meets ANSI/TIA/EIA‑RS‑485‑A‑98, ISO 8482:1987(E) and UL 1577 safety standards.
Analog Devices ADM2485 specifications
| Maximum Data Rate | 16 Mbps |
|---|---|
| Common‑Mode Transient Immunity | >25 kV/μs |
| Operating Temperature Range | –40 °C to +85 °C |
| Logic Supply Voltage | 3.3 V or 5 V |
| Package | 16‑lead wide‑body SOIC (RW‑16) |
Source: Analog Devices ADM2485 High Speed Isolated RS-485 Transceiver Datasheet
All Analog Devices ADM2485 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the ADM2485?
The device supports up to 16 Mbps data rate.
From: Analog Devices ADM2485 High Speed Isolated RS-485 Transceiver Datasheet
How much common‑mode transient immunity does the ADM2485 provide?
It provides greater than 25 kV/μs of common‑mode transient immunity.
From: Analog Devices ADM2485 High Speed Isolated RS-485 Transceiver Datasheet
What is the maximum data rate supported by the ADM2485?
The device supports a maximum data rate of 16 Mbps.
From: Analog Devices ADM2485 Isolated RS-485 Transceiver Datasheet
What isolation voltage rating does the ADM2485 have?
It is rated for 2500 Vrms isolation for a 1‑minute duration.
From: Analog Devices ADM2485 Isolated RS-485 Transceiver Datasheet
