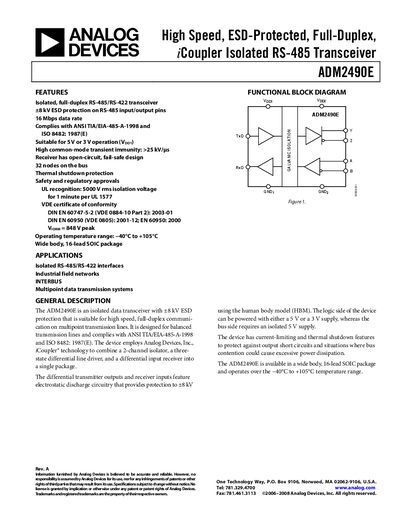

Analog Devices ADM2490E RS-485 Transceiver Datasheet
The ADM2490E is an isolated, full‑duplex RS‑485/RS‑422 transceiver with up to 16 Mbps data rate and +8 kV ESD protection. It supports 3 V or 5 V operation and includes thermal shutdown and fail‑safe receiver features.
The document provides detailed specifications, pin descriptions, timing data, regulatory approvals, and typical application circuits for industrial field networks and other isolated communication needs.
Analog Devices ADM2490E specifications
| Maximum Data Rate | 16 Mbps |
|---|---|
| ESD Protection | +8 kV |
| Operating Temperature Range | ‑40 °C to +105 °C |
| Isolation Voltage (UL) | 5000 Vrms for 1 min |
| Package Type | 16‑lead SOIC (wide body) |
Source: Analog Devices ADM2490E RS-485 Transceiver Datasheet
