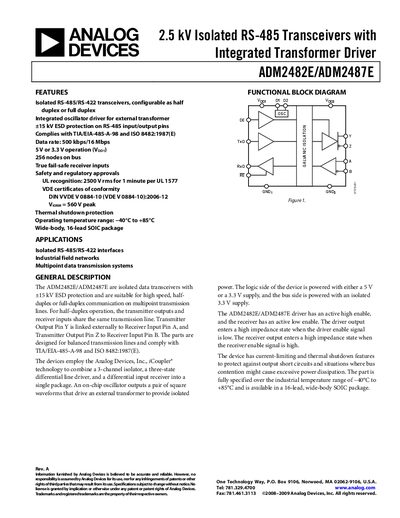

Analog Devices ADM2482E/ADM2487E Isolated RS-485 Transceiver Datasheet
The ADM2482E and ADM2487E are isolated data transceivers that provide +15 kV ESD protection and support high‑speed half‑duplex or full‑duplex communication on multipoint RS‑485/RS‑422 networks. They integrate an oscillator driver, a three‑state differential line driver, and a differential input receiver in a single iCoupler™ package, and are available in a 16‑lead wide‑body SOIC.
These devices are intended for industrial field networks, isolated RS‑485/RS‑422 interfaces, and other multipoint data transmission systems. They meet TIA/EIA‑485‑A‑98, ISO 8482:1987, UL 1577, and VDE certifications, and operate over a temperature range of –40 °C to +85 °C.
Analog Devices ADM2482E specifications
| Data Rate | 500 kbps (ADM2487E) / 16 Mbps (ADM2482E) |
|---|---|
| Supply Voltage | 5 V or 3.3 V operation |
| Isolation Voltage | 2500 Vrms for 1 minute |
| Operating Temperature Range | –40 °C to +85 °C |
| Short‑Circuit Output Current | 250 mA |
Source: Analog Devices ADM2482E/ADM2487E Isolated RS-485 Transceiver Datasheet
All Analog Devices ADM2482E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate for the ADM2482E and ADM2487E?
The ADM2482E supports up to 16 Mbps, while the ADM2487E supports up to 500 kbps.
From: Analog Devices ADM2482E/ADM2487E Isolated RS-485 Transceiver Datasheet
What isolation voltage rating do these transceivers meet?
They are rated for 2500 Vrms isolation for a 1‑minute test.
From: Analog Devices ADM2482E/ADM2487E Isolated RS-485 Transceiver Datasheet
What is the maximum isolation voltage rating?
The device provides 2500 Vrms isolation for up to one minute.
From: Analog Devices ADM2482E/ADM2487E Isolated RS-485 Transceiver Datasheet
What temperature range can the transceiver operate in?
It operates from –40 °C to +85 °C.
From: Analog Devices ADM2482E/ADM2487E Isolated RS-485 Transceiver Datasheet
