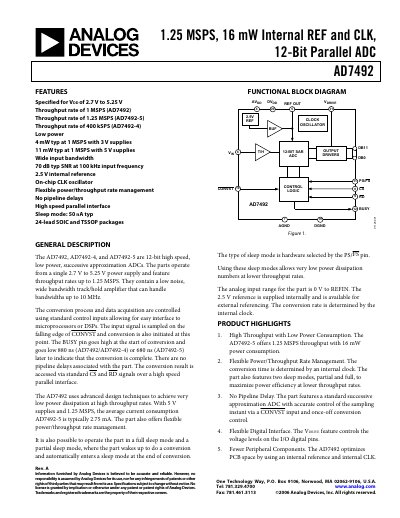

Analog Devices AD7492 12‑Bit Parallel ADC Datasheet
The AD7492 family comprises 12‑bit successive‑approximation ADCs that operate from a single 2.7 V to 5.25 V supply. They provide high‑speed parallel conversion rates up to 1.25 MSPS (AD7492‑5) while maintaining low power dissipation, internal 2.5 V reference, and flexible power‑throughput management with partial and full sleep modes.
The device is supplied in 24‑lead SOIC and TSSOP packages, features a wide‑bandwidth track‑and‑hold amplifier (up to 10 MHz), and offers a full set of digital control pins for easy interfacing to microprocessors or DSPs. Detailed specifications, timing diagrams, pin descriptions, and ordering information are provided in the following sections.
All Analog Devices AD7492 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum throughput rate of the AD7492‑5?
The AD7492‑5 can achieve a throughput rate of 1.25 MSPS.
From: ANALOG DEVICES 1.25 MSPS 16 mW Internal REF CLK 12-Bit Parallel ADC AD7492 handbook
What internal reference voltage does the ADC provide?
The ADC includes a 2.5 V internal reference.
From: ANALOG DEVICES 1.25 MSPS 16 mW Internal REF CLK 12-Bit Parallel ADC AD7492 handbook
