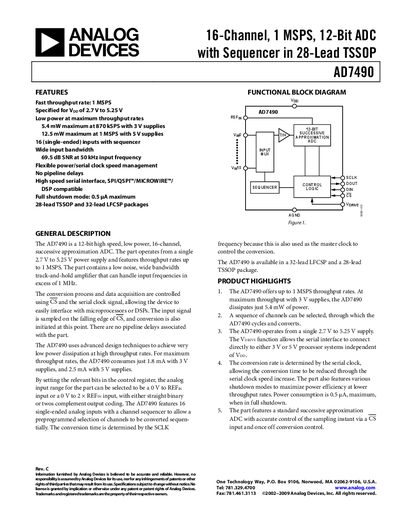

Analog Devices AD7490 Datasheet
The AD7490 is a 12‑bit high‑speed, low‑power ADC offering up to 1 MSPS throughput. It operates from a single 2.7 V to 5.25 V supply and provides 16 single‑ended inputs with a programmable channel sequencer. The device features a low‑noise track‑and‑hold amplifier, flexible power/clock management, and a high‑speed serial interface (SPI/QSPI/MICROWIRE).
The part is available in 28‑lead TSSOP and 32‑lead LFCSP packages. Detailed specifications cover dynamic performance, timing, absolute maximum ratings, pin configurations, and typical performance characteristics, making the AD7490 suitable for microprocessor or DSP‑based data‑acquisition systems.
Analog Devices AD7490 specifications
| Throughput rate | 1 MSPS |
|---|---|
| Supply voltage range | 2.7 V to 5.25 V |
| Number of input channels | 16 single‑ended |
| Resolution | 12 bits |
| Signal‑to‑Noise Ratio (SNR) | 69.5 dB at 50 kHz |
| Power consumption (max, 3 V, 870 kSPS) | 5.4 mW |
| Power consumption (max, 5 V, 1 MSPS) | 12.5 mW |
| Package options | 28‑lead TSSOP, 32‑lead LFCSP |
Source: Analog Devices AD7490 Datasheet
All Analog Devices AD7490 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7490?
The AD7490 can sample at up to 1 MSPS.
How much power does the AD7490 consume at its highest throughput?
At 870 kSPS with a 3 V supply it consumes 5.4 mW, and at 1 MSPS with a 5 V supply it consumes 12.5 mW.
What is the maximum sampling rate of the AD7490?
The AD7490 can sample up to 1 MSPS.
How many analog input channels does the AD7490 provide?
It provides 16 single‑ended analog input channels.
