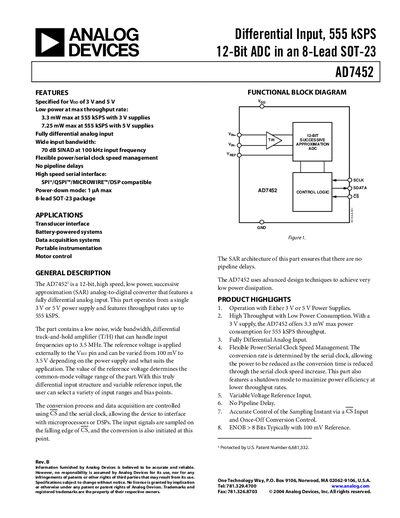

Analog Devices AD7452 12‑Bit ADC Datasheet
The AD7452 is a 12‑bit successive‑approximation ADC offering fully differential inputs, up to 555 kSPS throughput and low power operation from a single 3 V or 5 V supply. It includes a high‑speed serial interface compatible with SPI, QSPI, Microwire and DSP protocols, and a power‑down mode drawing as little as 1 pA.
Typical applications include transducer interfaces, battery‑powered systems, data‑acquisition, portable instrumentation and motor control. The device provides a wide input bandwidth, low noise performance and flexible clock‑speed management for optimized power usage.
Analog Devices AD7452 specifications
| Resolution | 12 Bits |
|---|---|
| SINAD (100 kHz input) | 70 dB min |
| Throughput Rate | 555 kSPS max |
| Power Consumption (3 V, 555 kSPS) | 3.3 mW max |
| Power Consumption (5 V, 555 kSPS) | 7.25 mW max |
| Aperture Delay | 5 ns typ |
| Input Capacitance (track/hold) | 30 pF / 10 pF typ |
