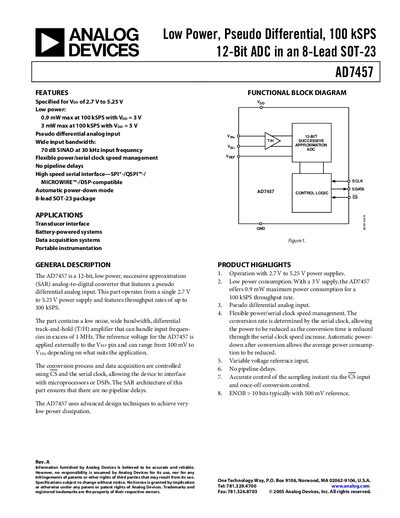

Analog Devices AD7457 12‑Bit ADC Datasheet
The AD7457 is a 12‑bit successive‑approximation ADC that operates from a single 2.7 V to 5.25 V supply. It offers pseudo‑differential inputs, a high‑speed SPI/QSPI/MICROWIRE serial interface, and no pipeline delays, making it suitable for battery‑powered and portable instrumentation.
Key features include low power consumption (0.9 mW at 3 V, 100 kSPS), flexible clock management, automatic power‑down, and a typical ENOB greater than 10 bits with a 500 mV reference. The device is supplied in an 8‑lead SOT‑23 package.
Analog Devices AD7457 specifications
| Resolution | 12 Bits |
|---|---|
| Supply Voltage (Vop) | 2.7 V to 5.25 V |
| Maximum Power Consumption (3 V, 100 kSPS) | 0.9 mW |
| Signal‑to‑Noise Ratio (SNR) | 71 dB min |
All Analog Devices AD7457 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical power consumption of the AD7457 at a 3 V supply and 100 kSPS?
The device consumes up to 0.9 mW at 3 V supply when operating at 100 kSPS.
What is the power consumption at a 3 V supply?
It consumes 0.9 mW maximum at 100 kSPS when powered at 3 V.
Which serial interfaces are supported by the AD7457?
The device supports SPI, QSPI, Microwire, and DSP‑compatible serial interfaces.
