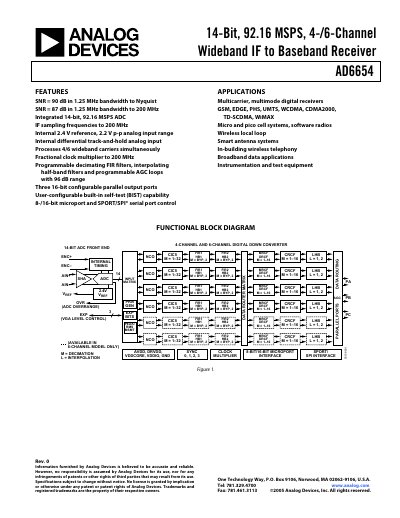

Analog Devices AD6654 14‑Bit 92.16 MSPS Wideband IF to Baseband Receiver Datasheet
The AD6654 from Analog Devices integrates a 14‑bit, 92.16 MSPS ADC with a 4‑/6‑channel digital down‑converter (DDC) for wideband IF‑to‑baseband conversion. It supports input frequencies up to 200 MHz and provides programmable filtering, automatic gain control, and multiple output ports for high‑speed data transfer.
The device includes an internal 2.4 V reference, differential input range of 2.2 V p‑p, and offers both parallel and serial (SPORT/SPI) interfaces. Detailed electrical, timing, and layout guidelines are provided for optimal performance in wireless, CDMA, UMTS, Wi‑MAX and other broadband applications.
Analog Devices AD6654 specifications
| Resolution | 14 bits |
|---|---|
| Maximum conversion rate | 92.16 MSPS |
| Differential input voltage range | 2.2 Vp‑p |
| Signal‑to‑noise ratio (1.25 MHz BW) | 90 dB |
Source: Analog Devices AD6654 Handbook
All Analog Devices AD6654 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD6654?
The AD6654 can sample at up to 92.16 MSPS.
How many channels does the AD6654 support?
The device is offered in 4‑channel and 6‑channel versions.
