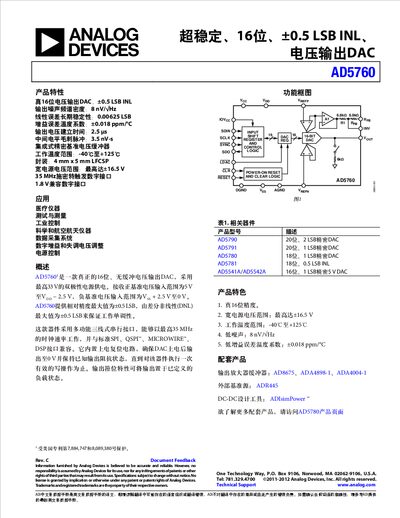

Analog Devices AD5760 16‑Bit Voltage Output DAC Datasheet
The AD5760 is a 16‑bit, bipolar voltage‑output DAC that offers high accuracy (±0.5 LSB INL) and low noise (8 nV/√Hz). It operates over a wide supply range up to ±16.5 V and a temperature range of –40 °C to +125 °C, making it suitable for medical, industrial, and aerospace applications.
The device features a three‑wire serial interface compatible with SPI, QSPI, Microwire, and DSP protocols, supporting up to 35 MHz clock rates. It includes on‑chip registers, power‑up reset, and output clamping for reliable operation. Pin‑out, timing diagrams, and mechanical dimensions are provided for board‑level integration.
Analog Devices AD5760 specifications
| Resolution | 16 bits |
|---|---|
| Integral Non‑Linearity (INL) | ±0.5 LSB |
| Output Noise Spectral Density | 8 nV/√Hz |
| Supply Voltage Range | ±16.5 V |
| Operating Temperature Range | –40 °C to +125 °C |
| Maximum Clock Rate | 35 MHz |
Source: Analog Devices AD5760 16‑Bit Voltage Output DAC Datasheet
All Analog Devices AD5760 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD5760?
The AD5760 provides a true 16‑bit resolution.
From: Analog Devices AD5760 16‑Bit Voltage Output DAC Datasheet
What is the maximum serial clock frequency supported?
The device can operate with a serial clock up to 35 MHz in write mode.
From: Analog Devices AD5760 16‑Bit Voltage Output DAC Datasheet
