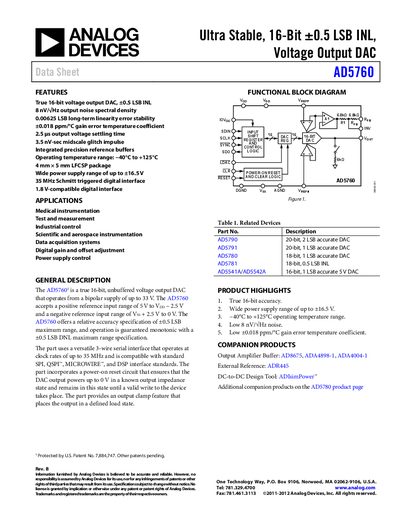

The document describes the AD5760 DAC chip, which has a 16-bit precision and ±0.5 LSB INL, an output noise spectral density of 8 nV/√Hz, a long-term linearity error stability of 0.00625 LSB, a gain error temperature coefficient of ±0.018 ppm/°C, an output voltage settling time of 2.5 μs, and a midscale glitch impulse of 3.5 nV-sec. It also features integrated precision reference buffers, operates in a temperature range of -40°C to +125°C, and is packaged in a 4 mm × 5 mm LFCSP package. The AD5760 is suitable for a wide range of applications including medical instrumentation, test and measurement, industrial control, scientific and aerospace instrumentation, data acquisition systems, digital gain and offset adjustment, and power supply control.
The AD5760 from Analog Devices is a 16‑bit, unbuffered voltage‑output DAC designed for precision instrumentation. It operates from a bipolar supply up to +33 V and offers a wide power‑supply range of up to +16.5 V, with an operating temperature range of –40 °C to +125 °C.
Key features include ultra‑low 8 nV/√Hz noise, 2.5 ps settling time, and a versatile 3‑wire serial interface that can run at up to 35 MHz. The device is supplied in a 4 mm × 5 mm LFCSP package and is supported by a range of companion products such as precision reference buffers and external references.
| Resolution | 16 Bits |
|---|---|
| Integral Nonlinearity Error | ±0.5 LSB (B grade) |
| Output Noise Spectral Density | 8 nV/V·Hz |
| Output Voltage Settling Time | 2.5 ps |
| Gain Error Temperature Coefficient | +0.018 ppm/°C |
The device operates from –40 °C to +125 °C.
It supports a wide power‑supply range of up to +16.5 V.
The serial interface can operate at up to 35 MHz.
It is offered in a 4 mm × 5 mm LFCSP package.
