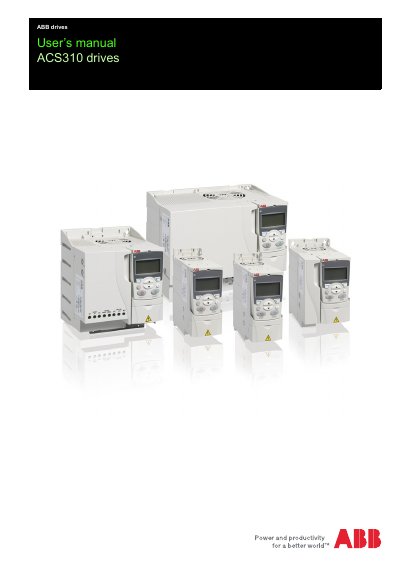

ABB ACS310 Drives User Manual
This manual is intended for engineers, technicians, and end‑users who install, commission, and operate the ABB ACS310 variable‑frequency drive. It covers safety requirements, mechanical and electrical installation, start‑up procedures, and detailed configuration of the drive’s I/O and control panels.
The document is organized into sections such as Safety, Introduction, Operation principle and hardware description, Mechanical installation, Electrical installation, Start‑up and control with I/O, Control panels, Parameters mode, Application macros, Program features, and Technical data. Each section includes step‑by‑step instructions, wiring diagrams, and reference tables to help users correctly set up and maintain the drive.
ABB ACS310 specifications
| Input voltage range (low) | 200–240 V AC |
|---|---|
| Input voltage range (high) | 380–480 V AC |
| Phase configuration | 3‑phase input |
| Frame sizes | R0–R4 |
Source: ABB ACS310 Drives User Manual
All ABB ACS310 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I start up the ACS310 drive?
Follow the start‑up procedures in section 8, starting on page 57, which describe manual and guided start‑up methods.
What does the type designation key indicate?
The type designation key encodes the basic configuration, input voltage range, EMC filter status, and any optional selections of the drive.
Can the ACS310 drive be repaired in the field?
No, the drive is not field‑repairable; a qualified service center must replace it.
What is the IP rating of the ACS310?
The device has an IP20 rating for cabinet‑type installation.
