Start here

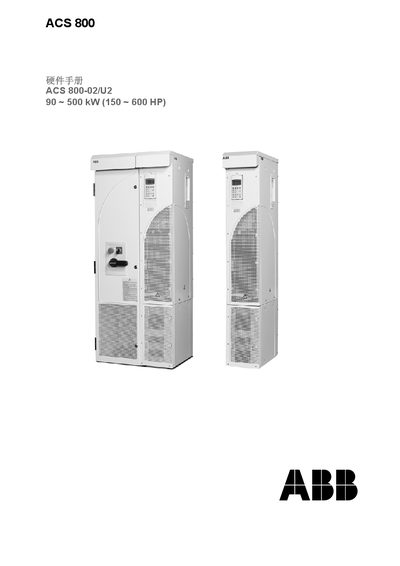

ABB ACS800-02/U2 Hardware Manual
This manual covers the safety requirements, electrical and mechanical installation, motor control, I/O board configuration, and maintenance procedures for the ABB ACS800‑02/U2 drive. It includes detailed technical data, dimension drawings, and guidance on brake resistor selection and wiring.
The document also provides grounding instructions, handling precautions for the DC capacitor group, and troubleshooting tips, ensuring safe and reliable operation of the drive in industrial applications. This manual is written in Chinese.
All ABB ACS800-02 documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How many times can the DC capacitor group be charged within ten minutes?
The DC capacitor group may be charged up to five times within a ten‑minute period.
What grounding requirements are specified for the ACS800‑02/U2?
Each drive, motor, and connected equipment must be connected to protective earth, with adequate conductor cross‑section, and cable shielding must be bonded to the PE conductor where required.
How long is the warranty period for the ACS800 drive?
The warranty period is 18 months from the ABB shipment date.
What is the ABB service hotline for the ACS800 series?
The 24‑hour service hotline is 010‑58217766.
