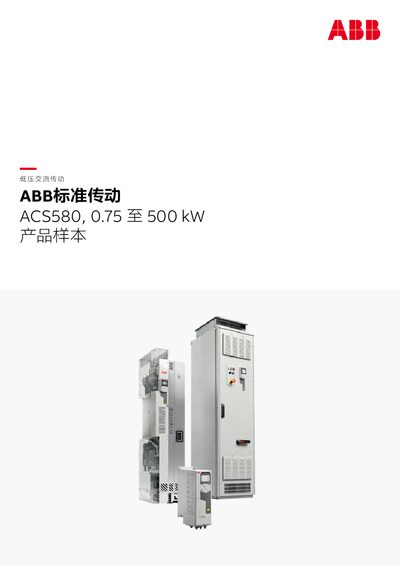

ABB ACS580 Standard Drive Product Sample
The ACS580 series is a low‑voltage AC drive covering a power range from 0.75 kW up to 500 kW. It is designed for a wide variety of industrial applications such as material handling, pumps, fans, mixers and many others, offering reliable and efficient speed and torque control.
The drive includes built‑in functions like vector control, safety‑torque release, EMC filtering and optional accessories such as control panels, cooling units and communication modules. It can be installed as wall‑mounted units (IP21/IP55) or as cabinet modules, and is supported by ABB’s Drive Composer software and mobile app for diagnostics and configuration. This manual is written in Chinese.
ABB ACS580 specifications
| Power range (overall) | 0.75 – 500 kW |
|---|---|
| Wall‑mounted power range | 0.75 – 250 kW, 380‑480 V three‑phase |
| Cabinet module power range | 75 – 500 kW, 380‑480 V three‑phase |
| IP ratings | IP21, IP55, IP42/54 (optional) |
| Control panel language support | 16 languages |
| Safety torque release | SIL 3 safety‑torque cancel |
All ABB ACS580 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the power range of the ACS580 drive?
The ACS580 drive covers a power range from 0.75 kW up to 500 kW.
What installation options are available for the ACS580?
It can be installed as wall‑mounted units (IP21 or IP55) for up to 250 kW, or as cabinet modules for up to 500 kW.
What drive replaces the ACS550?
The guide describes replacing the ACS550 drive with the ACS580 general purpose drive.
From: ABB ACS580/ACS550 General Purpose Drives Replacement Guide
How do I select the correct ACS580 replacement for an ACS550?
Start by identifying the ACS550 type designation, then compare the motor power and current rating and the options.
From: ABB ACS580/ACS550 General Purpose Drives Replacement Guide
When was this commissioning manual made effective?
The manual is effective as of 2022‑12‑20.
How can I provide feedback on ABB Drives manuals?
Feedback can be submitted by navigating to new.abb.com/drives/manuals-feedback-form.
