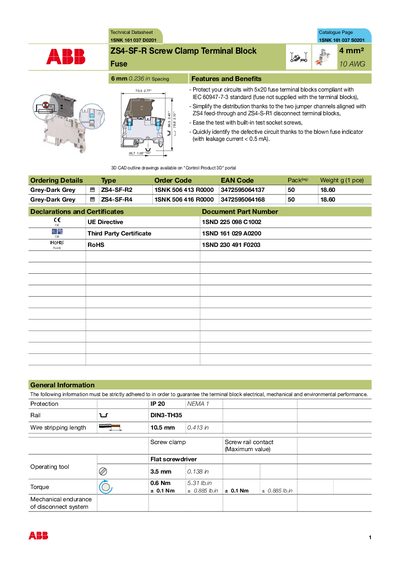

ABB ZS4-SF-R Screw Clamp Terminal Block Technical Datasheet
The ZS4-SF-R screw clamp terminal block is designed for 4 mm² (10 AWG) conductors and offers built‑in fuse protection compliant with IEC 60947‑7‑3. It features two jumper channels, a test socket, and a blown‑fuse indicator for easy fault identification.
The datasheet provides electrical ratings (250 V, 6.3 A), mechanical data (torque 0.6 Nm, wire stripping length 10.5 mm), environmental test results (IP20, temperature range –55 °C to +110 °C) and a full list of compatible accessories and ordering codes.
ABB ZS4-S specifications
| Rated voltage | 250 V (IEC 60947‑1) |
|---|---|
| Rated current | 6.3 A (IEC 60947‑7‑1) |
| IP protection | IP20 |
| Torque (screw clamp) | 0.6 Nm |
| Wire stripping length | 10.5 mm |
| Rated cross section | 4 mm² (10 AWG) |
| Short‑time withstand current (1 s) | 480 A |
| Operating temperature range | –55 °C to +110 °C |
Source: ABB ZS4-SF-R Screw Clamp Terminal Block Technical Datasheet
