Key facts
- Brand
- ABB
- Model
- ACSM1-04
- Category
- Industrial Supply
- Industry
- Industrial
- Documents
- 2
- Languages
- ZH
- Last added
- 2011-09-29
Start here

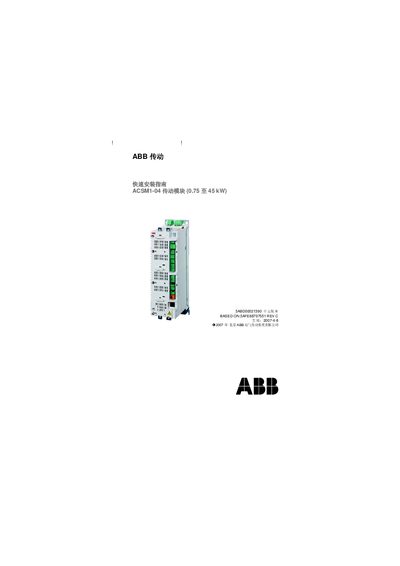

ABB ACSM1-04 Quick Installation Guide
This guide explains how to safely install the ABB ACSM1-04 drive module, covering required safety steps such as disconnecting power, waiting for capacitor discharge, and verifying with a voltmeter. It also outlines the environmental requirements, including IP20 protection and a maximum ambient temperature of 40 °C.
Key installation topics include mechanical mounting to DIN rails, wiring of power and control cables, torque specifications for terminal screws, and configuration of I/O and jumper settings. The document references the full hardware manual for detailed specifications and compliance with IEC and UL standards. This manual is written in Chinese.
ABB ACSM1-04 specifications
| Power rating | 0.75 to 45 kW |
|---|---|
| Protection class | IP20 |
| Maximum ambient temperature | 40 °C |
| Peak current rating | ≤ 100,000 rms |
| Maximum circuit voltage | 480 V |
All ABB ACSM1-04 documents by type
The shortest path to a working setup, usually only a few pages.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What torque should be applied to the power terminal screws for model ACSM1-04xx-024A…090A-4?
A torque of 3 N·m (25 lbf·in) should be used.
What is the power rating range of the ACSM1‑04 inverter?
The ACSM1‑04 inverter is rated for 0.75 kW up to 45 kW.
Can the ACSM1‑04 be installed in a TN grounding system?
No. Installing the inverter in a TN system may damage it.
