Key facts
- Brand
- ABB
- Model
- NCAN-02
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-03-22
Start here

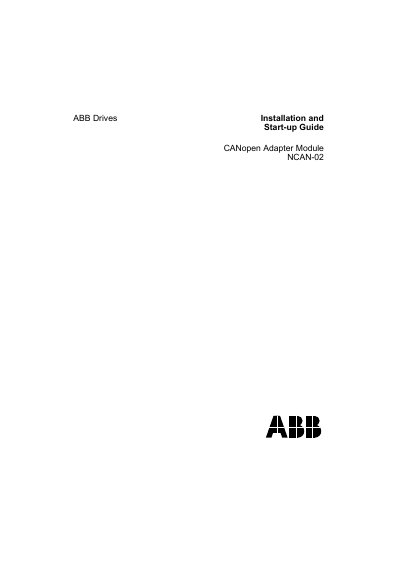

ABB NCAN-02 CANopen Adapter Module Installation and Start-up Guide
The Installation and Start‑up Guide is intended for engineers and technicians who install, commission and operate the NCAN-02 CANopen Adapter Module with an ABB drive. It assumes basic knowledge of electrical wiring and drive operation.
The document covers safety warnings, mechanical mounting, electrical wiring, DIP‑switch and parameter settings, CANopen configuration, communication details, diagnostic LED indications, technical data, and ambient condition limits. Appendices list technical specifications, connector pin‑outs, and environmental requirements.
ABB NCAN-02 specifications
| Enclosure dimensions | 100 × 22.5 × 115 mm (H×W×D) |
|---|---|
| Protection rating | IP20 |
| Current consumption | 30 mA at 24 VDC |
| Maximum DDCS link length | 10 m |
| Transfer rate (DDCS link) | 4 Mbit/s |
| Operating temperature range | 0 to +50 °C |
Source: ABB NCAN-02 CANopen Adapter Module Installation and Start-up Guide
All ABB NCAN-02 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What safety steps must be taken before working on the drive?
The drive must be switched off, and the intermediate circuit capacitors must be allowed to discharge for at least 5 minutes before any work is performed. It is good practice to verify discharge with a voltage‑indicating instrument.
From: ABB NCAN-02 CANopen Adapter Module Installation and Start-up Guide
What are the dimensions and protection rating of the NCAN‑02 module?
The module has a plastic enclosure measuring 100 × 22.5 × 115 mm (H×W×D) and is rated IP20.
From: ABB NCAN-02 CANopen Adapter Module Installation and Start-up Guide
What is the maximum cable length allowed between stations on the CANopen network?
The maximum allowed cable length between stations is 10 meters.
What transmission speed does the CANopen network support for the NCAN-02?
The CANopen network operates at a transmission speed of 4 Mbit/s.
