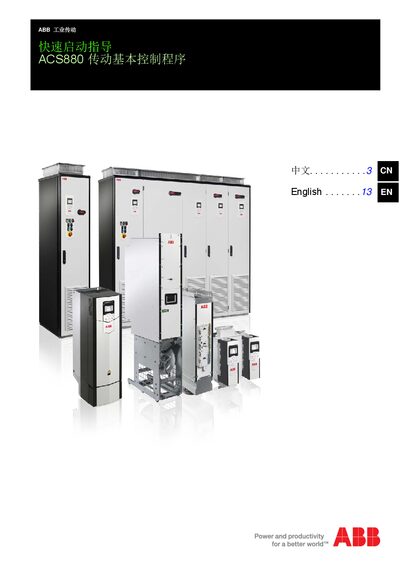

ABB ACS880 Drive Quick Start Guide
The guide provides step‑by‑step instructions for initializing an ACS880 drive equipped with the primary control program. It covers safety requirements, power‑on procedures, date and time configuration, supply voltage selection, motor data entry, and control signal setup.
Safety warnings emphasize that only qualified electrical engineers may install or maintain the drive, and that the drive must be de‑energized before any work. After completing the configuration, the drive can be started from the local control panel or via I/O signals. This manual is written in Chinese.
ABB ACS880 specifications
| ACS880-04 Power Range | 200 to 710 kW, 300 to 700 hp |
|---|---|
| ACS880-04XT Power Range | 500 to 1200 kW |
| ACS880-07 Power Range (Standard) | 45 to 710 kW, 50 to 700 hp |
| ACS880-07 Power Range (High) | 560 to 2800 kW |
| Document Revision | Rev P |
| Publication Date | June 27, 2016 |
Source: ABB ACS880 Drive Hardware Manual
All ABB ACS880 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
How to use the product for one specific task, with worked examples.
Instruction set, parameters and examples for configuring or programming the device.
Disassembly, diagnostics and part numbers, for repair.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
Is there a separate manual for the ACS880-04XT?
Yes, there is a specific hardware manual for the ACS880-04XT drive module packages.
Where can I find the primary control program firmware manual?
The primary control program firmware manual is listed as a separate document with part number 3AUA0000085967.
What is the minimum clearance required above the cabinet?
A free space of 500mm must be retained between the top of the cabinet and the ceiling to ensure cooling.
From: ABB ACS880 Multi-Drive Cabinet Mechanical Installation Guide
Is welding recommended for fixing the cabinet?
Welding is not recommended. If necessary, the welding circuit return wire must be connected to the cabinet frame 0.5m away from the weld point to prevent damage.
From: ABB ACS880 Multi-Drive Cabinet Mechanical Installation Guide
How many function blocks can be used in an adaptive program?
An adaptive program can use up to 20 standard function blocks, depending on the block types and predefined inputs/outputs.
From: ABB ACS880 Industrial Inverter Adaptive Programming Application Guide
How can the adaptive program be disabled?
The adaptive program can be disabled by setting parameter 96.70 (Disable Adaptive Program).
From: ABB ACS880 Industrial Inverter Adaptive Programming Application Guide
