Start here

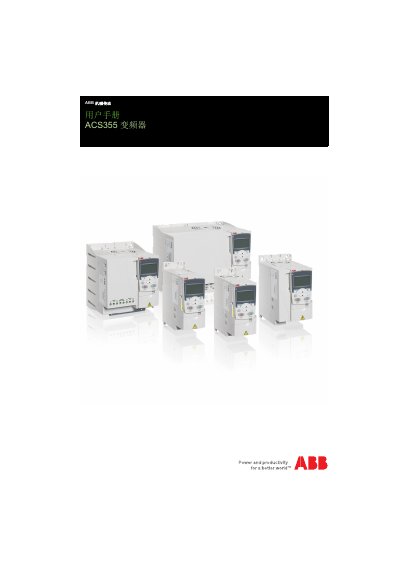

ABB ACS355 Variable Frequency Drive User Manual
This user manual provides comprehensive instructions for the safe operation, installation, and configuration of the ABB ACS355 Variable Frequency Drive. It is intended for users who need to install, commission, and maintain this specific drive model.
The document details the hardware description, mechanical and electrical installation procedures, startup sequences via I/O interfaces, and the use of various control panels including basic and assistant types. It also explains application macros for different motor configurations and programming functions. This manual is written in Chinese.
ABB ACS355 specifications
| Power Range | 0.37 to 22 kW / 0.5 to 30 hp |
|---|---|
| Motor Control | Sensorless vector control for induction and permanent magnet motors |
| Safety Function | Safe torque off function (SIL3) |
| Protection Class | IP66 |
All ABB ACS355 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- ABB ACS355 Variable Frequency Drive Configuration Guide 4 p
- ABB ACS355 Variable Frequency Drive User Manual 406 p
- ABB ACS355/ACS850/ACS880/ACSM1/ACS550-01/ACS800 Drives Quick Start Guide for Siemens PLCs 139 p
- ABB ACS355 Variable Frequency Drive User Manual 406 p
- ABB ACS355 Drive User's Manual 403 p
- ABB ACS355 Drive User Manual 405 p
- ABB ACS355 Frequency Transformer User Manual 406 p
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What voltage ranges are available for the ACS355 drive?
The ACS355 is available in two voltage ranges: 200 to 240 V and 380 to 480 V.
Does the ACS355 require an encoder for permanent magnet motors?
No, the drive supports sensorless vector control for permanent magnet motors without a feedback device.
How do you configure the motor control mode?
Select parameter 9904 and choose option 3 for SCALAR FREQ.
From: ABB ACS355 Variable Frequency Drive Configuration Guide
How do you enable the ACS355 for Modbus control?
Set parameter 1001 to 10 COMM.
From: ABB ACS355 Variable Frequency Drive Configuration Guide
Is an input reactor required for unstable power grids?
Yes, an input reactor is required in cases where the supply grid is unstable.
Which ABB drive models are supported by this guide?
The guide supports ACS355, ACS850, ACS880, ACSM1, ACS550-01, and ACS800 drives.
From: ABB ACS355/ACS850/ACS880/ACSM1/ACS550-01/ACS800 Drives Quick Start Guide for Siemens PLCs
