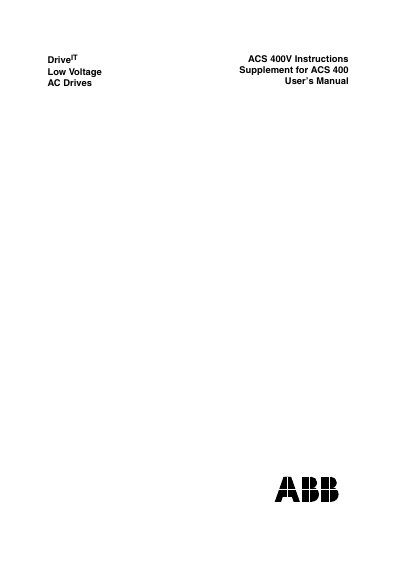

ABB ACS 400V Instructions Supplement
This supplement provides additional safety warnings, installation guidance, and operational details for the ABB ACS 400V low‑voltage AC drive. It is intended for use together with the main ACS 400 User Manual and is especially relevant for HVAC applications.
Key topics include safety precautions for handling dangerous voltages, mounting and wiring of the RFI filter, I/O configuration, various control modes (0‑10 V, PID, start/stop), and EMC requirements. The document also lists maximum motor cable lengths and compliance with relevant standards.
ABB ACS 400V specifications
| Frame size R1 and R2 power range | 3.0 – 11 kW |
|---|---|
| Frame size R3 and R4 power range | 15 – 37 kW |
| Maximum motor cable length (with input filter) | 30 m |
| Switching frequency options | 4 kHz or 8 kHz |
| EMC filter compliance standards | EN61800‑3, First Environment, Restricted Distribution, AS/NZS 2064 |
All ABB ACS 400V documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Who may install the ACS 400V?
Only a competent electrician may install the ACS 400V.
What safety warnings are given about voltages?
Dangerous voltages are present when the mains supply is connected, and even after power‑down there may be hazardous voltages at various terminals.
What is the power range of the ACS 400V drive?
The ACS 400V supports a power range of 3 to 37 kW at 380‑480 V.
Which protection classes are available for the ACS 400V?
The drive is offered in IP21 and IP54 protection classes.
