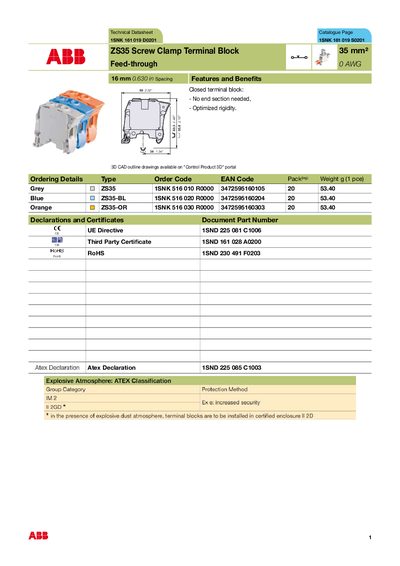

ABB ZS35 Screw Clamp Terminal Block 35 mm Feed-through Technical Datasheet
The ZS35 screw clamp terminal block is a 35 mm feed‑through terminal designed for robust electrical connections in industrial applications. It features a screw clamp mechanism, polyamide insulating material and IP20 protection, and is supplied in grey, blue and orange colour options.
The datasheet provides electrical ratings such as 125 A rated current, 4200 A short‑time withstand current, and voltage ratings up to 1000 V (IEC). It also lists mechanical data, torque requirements, environmental test results, and a full accessories catalogue including end stops, jumper bars and protective covers.
ABB ZS35 specifications
| Rated current | 125 A |
|---|---|
| Short‑time withstand current (1 s) | 4200 A |
| Protection class | IP20 |
| Insulating material | Polyamide |
| Flammability rating | UL94 VO |
| Wire stripping length | 17 mm |
| Torque for screw clamp | 2.9 Nm (25.7 Ib·in) |
| Storage temperature range | -55 °C to +110 °C |
| Rated voltage (IEC) | 1000 V |
| Rated voltage (UL 1059) | 600 V |
Source: ABB ZS35 Screw Clamp Terminal Block 35 mm Feed-through Technical Datasheet
All ABB ZS35 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated current of the ZS35 terminal block?
The ZS35 is rated for a continuous current of 125 A according to IEC 60947‑7‑1.
From: ABB ZS35 Screw Clamp Terminal Block 35 mm Feed-through Technical Datasheet
What short‑time withstand current can the ZS35 handle?
It can withstand a short‑time current of 4200 A for 1 second.
From: ABB ZS35 Screw Clamp Terminal Block 35 mm Feed-through Technical Datasheet
What is the IP protection rating of the ZS35-PE terminal block?
The ZS35-PE terminal block has an IP20 protection rating.
What material is used for the insulation of the ZS35-PE terminal block?
The insulating material is polyamide.
