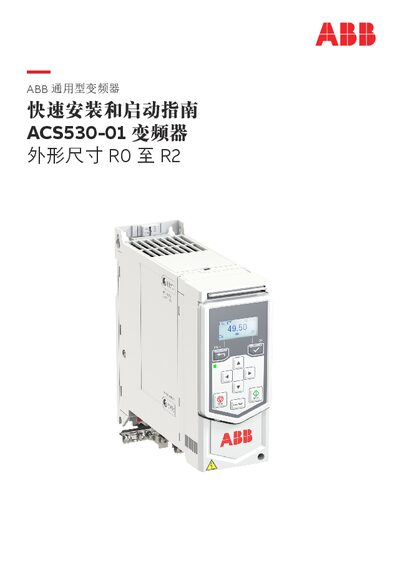

ABB ACS530-01 Inverter Quick Installation and Start-up Guide
The Quick Installation and Start‑up Guide for the ABB ACS530‑01 inverter gives concise instructions for safely installing and commissioning the drive. It includes safety warnings, capacitor reconditioning after long storage, and references to the full hardware and firmware manuals for detailed information.
The document covers power‑cable selection, mounting options (screw or DIN‑rail), wiring and grounding procedures, and basic parameter settings. It also lists typical cable specifications, fuse ratings, operating temperature limits, and provides contact information for ABB service stations. This manual is written in Chinese.
ABB ACS530 specifications
| Rated Voltage | 380–480 V AC |
|---|---|
| IP Protection | IP20 |
| Typical Power Cable Size (R0‑R2) | 3×1.5 mm² copper + 1.5 mm² ground |
Source: ABB ACS530 Hardware Manual
All ABB ACS530 documents by type
Disassembly, diagnostics and part numbers, for repair.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
When was this firmware manual released?
The manual’s effective date is 2016‑12‑01.
How can I contact ABB drive technical support in China?
Call the technical hotline at +86 400 810 8885 or email [email protected].
What is the rated voltage range for the ACS530 inverter?
The inverter is rated for 380 V to 480 V AC.
What IP protection level does the ACS530 have?
The ACS530 inverter has an IP20 protection rating.
What is the rated voltage range for the ACS530?
The ACS530 is rated for 380 V to 480 V AC.
How long can the braking resistor cable be?
The maximum allowed length for the braking resistor cable is 10 meters (33 feet).
