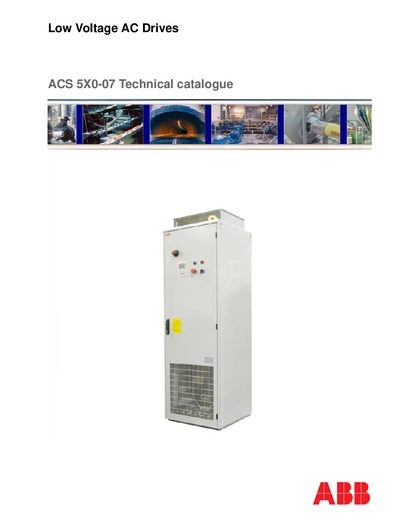

ABB ACS5X0-07 Technical Catalogue
The ACS5X0-07 is a cabinet‑built low‑voltage AC drive designed for industrial applications. It offers a compact design, multiple protection classes (IP21, IP22, IP42, IP54) and a range of optional accessories such as relay output modules, braking choppers, and fieldbus extensions.
The catalogue lists detailed technical specifications, wiring options, analog and digital I/O configurations, and communication protocols (RS‑485 Modbus). It also describes environmental limits, enclosure colours, and optional cabinet equipment.
ABB ACS5X0-07 specifications
| Supply voltage | 3‑phase, 380‑480 V |
|---|---|
| Power range | 1.1‑110 kW |
| Power factor | 0.98 |
| Frequency | 48‑63 Hz |
| Ambient temperature | -15 °C to 40 °C |
All ABB ACS5X0-07 documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the power range of the ACS5X0-07?
The drive is rated for 1.1 kW up to 110 kW.
What communication protocol does the drive support?
The drive uses RS‑485 Modbus protocol for serial communication.
How long can the brake resistor cable be?
The brake resistor cable may be up to 10 meters long.
What is the power rating range of the ACS5X0-07 drive?
The drive is rated for power from 1.1 kW up to 160 kW.
