Start here

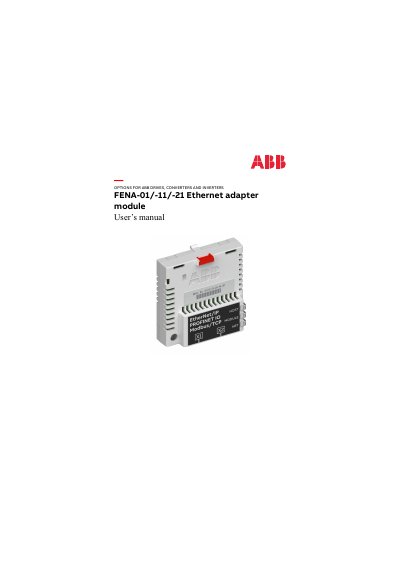

ABB FENA-01/-11/-21 Ethernet Adapter Module User's Manual
The document serves as a comprehensive user guide for the ABB FENA-01/-11/-21 Ethernet Adapter Module. It details safety instructions, mechanical and electrical installation procedures, and provides specific configuration parameters for different drive models including ACS355, ACSM1, ACS850, ACQ810, ACS480, ACS580, and ACS880.
The manual extensively covers three industrial communication protocols: Modbus/TCP, EtherNet/IP, and PROFINET IO. It includes detailed sections on setting up fieldbus communication, configuring client software for PLCs (such as Allen-Bradley), understanding communication profiles, interpreting register maps, and troubleshooting via LED diagnostics.
ABB FENA-01 specifications
| Protocol | EtherNet/IP |
|---|---|
| Network Role | Server |
| Functional Profile | ODVA AC/DC Drive |
Source: ABB FENA-01 Ethernet Adapter Module EtherNet/IP Protocol Manual
All ABB FENA-01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What organization promotes interoperativity for EtherNet/IP products?
ODVA (Open DeviceNet Vendor Association) is the independent organization that promotes interoperativity between different manufacturers EtherNet/IP products.
From: ABB FENA-01 Ethernet Adapter Module EtherNet/IP Protocol Manual
How long must capacitors discharge before working on the drive?
You must allow the intermediate circuit capacitors 5 minutes to discharge before working on the frequency converter, motor, or motor cable.
From: ABB FENA-01 Ethernet Adapter Module EtherNet/IP Protocol Manual
What protocols does the FENA module support?
The module supports Modbus/TCP, EtherNet/IP, and PROFINET IO protocols.
From: ABB FENA-01/-11/-21 Ethernet Adapter Module User's Manual
What is the power requirement for the adapter module?
The module requires a +3.3 V supply with a maximum current of 400 mA, supplied by the drive.
From: ABB FENA-01/-11/-21 Ethernet Adapter Module User's Manual
