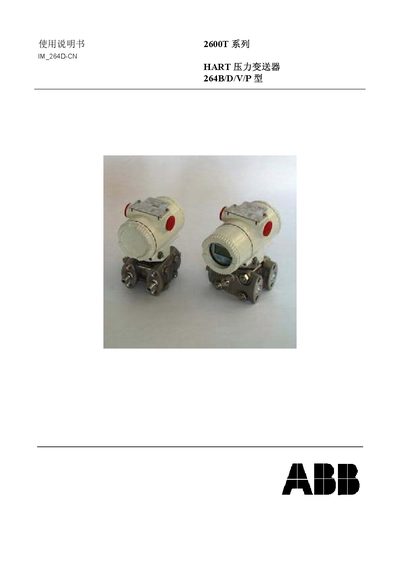

ABB 2600T 264B/D/V/P HART Pressure Transmitter User Manual
This manual provides detailed instructions for the ABB 2600T series HART pressure transmitter, model 264B/D/V/P. It includes safety warnings, transport, storage, installation procedures, electrical connection guidelines, and calibration steps for accurate pressure, flow and level measurement.
The document also contains extensive appendices covering optional features such as HART programming, explosion‑proof (Ex) safety, IP protection, and troubleshooting information to help users maintain reliable operation in hazardous environments. This manual is written in Chinese.
ABB 2600T-264 specifications
| Fault protection current threshold | 20 mA |
|---|---|
| Maximum spur length | 120 m |
| Maximum number of devices on bus | 32 |
| Data transmission speed | 31.25 Kbits/s |
Source: ABB 2600T-264 Pressure Transmitter PROFIBUS PA Appendix
All ABB 2600T-264 documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What happens if a fault causes current consumption above 20 mA?
The fault‑protection circuit disconnects the device from the bus when the current exceeds 20 mA.
From: ABB 2600T-264 Pressure Transmitter PROFIBUS PA Appendix
How many devices can be connected on a PROFIBUS PA network with this transmitter?
Up to 32 devices can be connected on the network.
From: ABB 2600T-264 Pressure Transmitter PROFIBUS PA Appendix
What is the operating voltage range of the transmitter?
The transmitter operates from a minimum of 10.5 V DC up to a maximum of 42 V DC.
From: ABB 2600T 264B/D/V/P HART Pressure Transmitter User Manual
