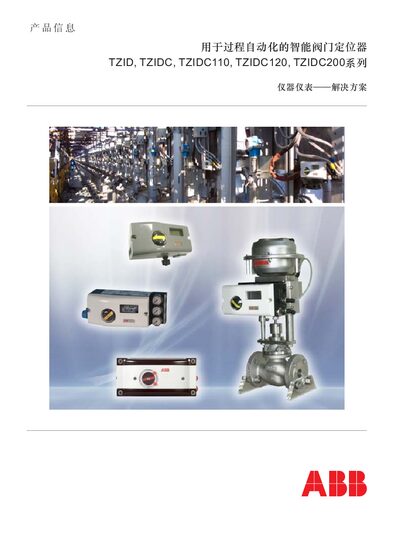

ABB TZID/TZIDC/TZIDC110/TZIDC120/TZIDC200 Smart Valve Positioner User Manual
The ABB TZID, TZIDC, TZIDC110, TZIDC120 and TZIDC200 series are compact, modular smart valve positioners for process automation. They feature electronic parameter configuration, built‑in LCD panel, and support multiple communication protocols such as PROFIBUS PA, FOUNDATION Fieldbus and HART.
The document provides step‑by‑step installation guidance for linear and angular actuators, details electrical connections, wiring diagrams, and lists technical specifications including input signal range, output pressure, temperature limits, and safety certifications. It also explains configuration, diagnostics and maintenance procedures. This manual is written in Chinese.
ABB TZID, TZIDC, TZIDC110, TZIDC120, TZIDC200 specifications
| Input signal range | 4‑20 mA (0‑100 %) |
|---|---|
| Output pressure range | 0‑6 bar (0‑90 psi) |
| Operating temperature | -40 °C to 85 °C |
| Enclosure protection rating | IP65 / NEMA 4X |
| Power supply voltage | 5‑11 V DC |
| Resolution | > 16 000 steps |
Source: ABB TZID/TZIDC/TZIDC110/TZIDC120/TZIDC200 Smart Valve Positioner User Manual
All ABB TZID, TZIDC, TZIDC110, TZIDC120, TZIDC200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the input signal range for the TZID series positioners?
The input signal range is 4 mA to 20 mA, representing 0 % to 100 % of the measured position.
From: ABB TZID/TZIDC/TZIDC110/TZIDC120/TZIDC200 Smart Valve Positioner User Manual
What are the operating temperature limits?
The positioners can operate from –40 °C up to +85 °C.
From: ABB TZID/TZIDC/TZIDC110/TZIDC120/TZIDC200 Smart Valve Positioner User Manual
What is the input signal range for the TZIDC positioner?
The input signal range is 4 mA to 20 mA, representing 0 % to 100 % of the measured variable.
From: ABB automate intelligence valve Locator TZID TZIDC TZIDC110 TZIDC120 TZIDC200 series Manual
What is the operating temperature range of the TZID series?
The devices can operate from –40 °C to +85 °C.
From: ABB automate intelligence valve Locator TZID TZIDC TZIDC110 TZIDC120 TZIDC200 series Manual
