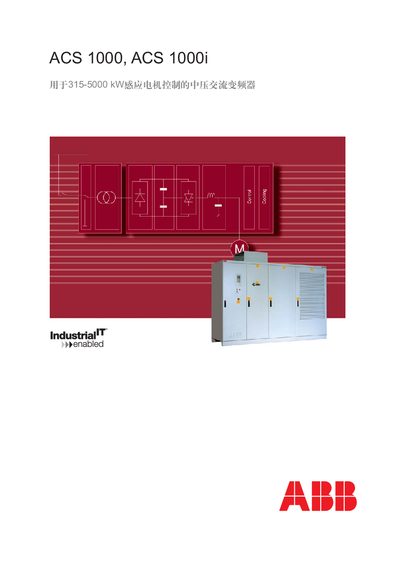

ABB ACS 1000 / ACS 1000i Service Manual
The ACS 1000 series is a medium‑voltage inverter offering power control for machines ranging from 315 kW to 5 MW. It can be supplied as a standalone unit (ACS 1000) or as an integrated solution with a transformer (ACS 1000i), and is available in air‑cooled or water‑cooled versions.
This manual covers product features, upgrade options, key technical data, the DTC control platform, installation guidelines, and detailed specifications such as power rating, voltage options, dimensions, and cooling methods. This manual is written in Chinese.
ABB ACS 1000i specifications
| Power rating | 315 kW – 5 000 kW |
|---|---|
| Voltage options | 2.3 kV, 3.3 kV, 4.0 kV, 4.16 kV |
| Cooling type | Air‑cooled or water‑cooled |
| Height (air‑cooled) | 2 005 mm (6 ft 6 in) |
All ABB ACS 1000i documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What power range does the ACS 1000 series support?
It can handle from 315 kW up to 5 000 kW.
What voltage options are available for the ACS 1000 inverter?
The inverter is offered for 2.3 kV, 3.3 kV, 4.0 kV and 4.16 kV systems.
What cooling options are available for the ACS 1000 drive?
The ACS 1000 can be supplied air‑cooled or water‑cooled, and an integrated input transformer is optional.
From: ABB Medium voltage AC drive ACS 1000 ACS 1000i 315 kW 5 MW 2.3 4.16 kV Manual(1)
Is the ACS 1000 drive suitable for retrofit applications?
Yes, the ACS 1000 family is retrofit‑ready and can be fitted to existing medium‑voltage induction motors.
From: ABB Medium voltage AC drive ACS 1000 ACS 1000i 315 kW 5 MW 2.3 4.16 kV Manual(1)
What cooling options are available for the ACS 1000 drive?
The ACS 1000 is available with air cooling or water cooling.
From: ABB Medium voltage AC drive ACS 1000 ACS 1000i 315 kW 5 MW 2.3 4.16 kV Manual
Can the ACS 1000 be used with standard induction motors without derating?
Yes, it is compatible with standard induction motors without derating.
From: ABB Medium voltage AC drive ACS 1000 ACS 1000i 315 kW 5 MW 2.3 4.16 kV Manual
