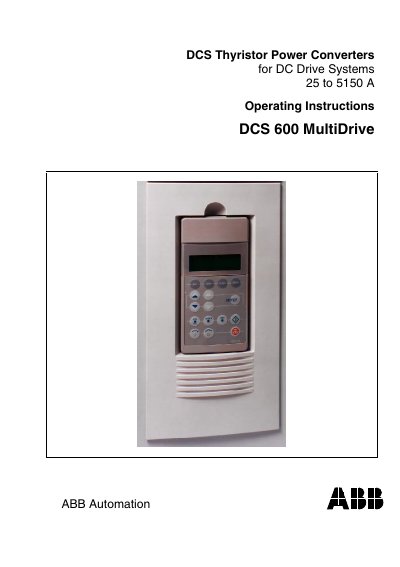

ABB DCS 600 MultiDrive Operating Instructions
This manual provides safety guidelines, installation notes and start‑up procedures for the ABB DCS 600 MultiDrive thyristor power converters used in DC drive systems. It details required earthing, de‑energising steps, and the qualifications needed for personnel working on the equipment.
The document also describes the control panel CDP 312 functions, parameter setting, fault resetting, and signal diagnostics, with specific sections for Profibus, Modbus PLUS, CS 31 and other fieldbus interfaces.
ABB DCS 600 specifications
| Power range | 10…500 kW (13…670 HP) |
|---|---|
| Input voltage | 230 V to 1000 V (3‑phase) |
| IP rating | IP 20/21/31/41 |
| Ambient temperature range | 0 °C to +55 °C |
Source: ABB DCS T600 Manual
All ABB DCS 600 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
How many module sizes are available for the DCS 600?
Five sizes are offered: C1, C2, A5, A6 and A7.
From: ABB DCS T600 Manual
What safety functions are provided by the DCS 600 CraneDrive?
The drive includes a mechanical brake, fast stop, torque proving, speed monitor, torque monitor, and fault handling to ensure safe operation.
From: ABB DCS 600 CraneDrive Standard ready-to-use crane drive product 22 to 5150 A 10 to 4900 kW Manual
How can the crane be controlled with the DCS 600 CraneDrive?
Control options include a joystick interface, radio control from ground level, fieldbus communication for PLC control, and switch supervision for limit monitoring.
From: ABB DCS 600 CraneDrive Standard ready-to-use crane drive product 22 to 5150 A 10 to 4900 kW Manual
What is the protection rating of the DC motors used in the conveyor?
The DC motors have an IP44 protection rating to withstand dust and moisture.
From: ABB DCS 600 Application Note – 260 DC Motors Controlled by One Mouse Click
Why was the DCS 600 series chosen for this project?
The DCS 600 series provides full communication between drives and the overriding control system, enabling centralized control.
From: ABB DCS 600 Application Note – 260 DC Motors Controlled by One Mouse Click
What safety steps must be taken before working on the DCS 600?
All work must be performed by qualified staff, the unit must be properly earthing, completely switched off and verified de‑energised before any maintenance.
