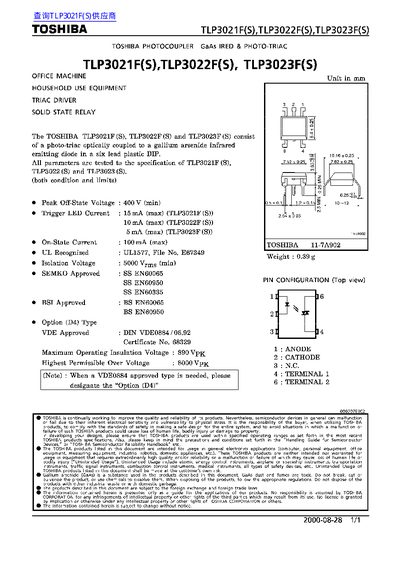

Toshiba TLP3021F(S)/TLP3022F(S)/TLP3023F(S) Datasheet
The Toshiba TLP3021F(S), TLP3022F(S) and TLP3023F(S) are GaAs infrared LED‑driven photo‑triacs packaged in a six‑lead DIP. They are intended for general electronics applications such as computers, office equipment, measuring devices, industrial robotics and domestic appliances.
The devices meet several safety and regulatory approvals (UL1577, VDE0884, EN60065, EN60950, BS EN60065, SEMKO) and include handling and disposal warnings due to the toxic GaAs material. Unintended usage in safety‑critical or high‑reliability equipment is expressly prohibited.
Toshiba TLP3023F specifications
| Peak Off‑State Voltage | 400 V (min) |
|---|---|
| Trigger LED Current (TLP3021F(S)) | 15 mA (max) |
| Trigger LED Current (TLP3022F(S)) | 10 mA (max) |
| Trigger LED Current (TLP3023F(S)) | 5 mA (max) |
| On‑State Current | 100 mA (max) |
| Isolation Voltage | 5000 V (min) |
| Maximum Operating Insulation Voltage | 890 V |
| Highest Permissible Over Voltage | 8000 V |
Source: Toshiba TLP3021F(S)/TLP3022F(S)/TLP3023F(S) Datasheet
All Toshiba TLP3023F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum peak off‑state voltage for the TLP302 series?
The minimum peak off‑state voltage is 400 V.
What is the maximum on‑state current allowed?
The device can handle up to 100 mA of on‑state current.
What is the maximum off‑state voltage rating?
The device is rated for a peak off‑state voltage of 400 V minimum.
What isolation voltage does the optocoupler provide?
It provides an isolation voltage of at least 5000 Vrms.
What is the peak off‑state voltage of the TLP3021F series?
The peak off‑state voltage is 400 V minimum.
What is the recommended trigger LED current for the TLP3022F model?
The recommended trigger LED current for TLP3022F is 10 mA maximum.
