TLP3021F(S),TLP3022F(S),TLP3023F(S) are photocoplers developed by TOSHIBA, consisting of a photo-triac optically coupled to a gallium arsenide infrared emitting diode. They have a maximum peak off-state voltage of 400V, trigger LED currents ranging from 15mA to 5mA, an on-state current of 100mA, and an isolation voltage of 5000Vrms.

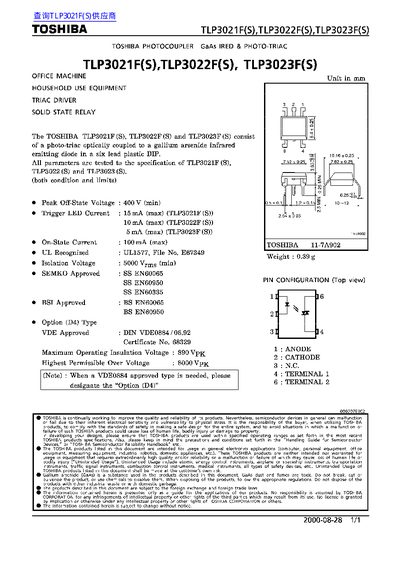

The Toshiba TLP3021F(S), TLP3022F(S) and TLP3023F(S) are photo‑triac optocouplers that integrate a gallium‑arsenide infrared emitting diode with a triac in a six‑lead plastic DIP package. They are intended for general electronics applications such as computers, office equipment, measuring devices and industrial robotics.
The devices are UL1577 recognized, VDE‑approved (Option D4), SEMKO, BSI and other certified. Key electrical parameters include a peak off‑state voltage of 400 V (min), isolation voltage of 5000 V (min) and on‑state current of 100 mA (max). Safety notes stress proper handling of the GaAs material and warn against use in high‑risk equipment.
| Peak Off‑State Voltage | 400 V (min) |
|---|---|
| Trigger LED Current (TLP3021F(S)) | 15 mA (max) |
| Trigger LED Current (TLP3022F(S)) | 10 mA (max) |
| Trigger LED Current (TLP3023F(S)) | 5 mA (max) |
| On‑State Current | 100 mA (max) |
| UL Recognition | UL1577 |
| Isolation Voltage | 5000 V (min) |
| Maximum Operating Insulation Voltage | 890 V |
| Highest Permissible Over Voltage | 8000 V |
| Weight | 0.39 |
| Package Type | six lead plastic DIP |
The peak off‑state voltage is 400 V minimum.
The recommended trigger LED current for TLP3022F is 10 mA maximum.
They are UL1577 recognized, VDE‑approved (Option D4), SEMKO, BSI and meet other relevant standards.
