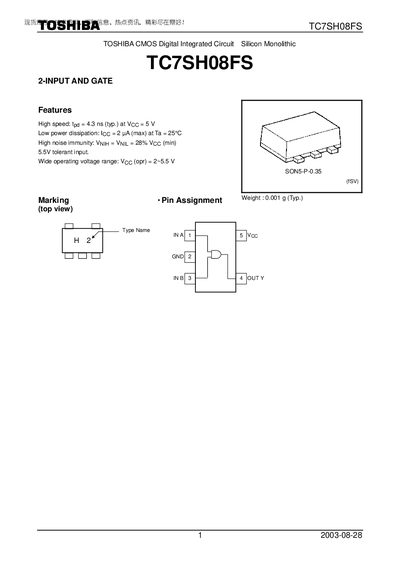

This document describes the features and characteristics of Toshiba TC7SH08FS CMOS digital integrated circuit, including high speed, low power dissipation, and high noise immunity.
The TC7SH08FS is a silicon‑monolithic CMOS digital IC that implements a 2‑input AND gate. It features a typical propagation delay of 4.3 ns, a maximum supply current of 2 pA, and 5 V tolerant inputs, making it suitable for high‑speed, low‑power applications.
The device operates from 2 V to 5.5 V, dissipates up to 50 mW, and is supplied in a compact SON5‑P‑0.35 package weighing only 0.001 g. The datasheet also includes absolute maximum ratings, recommended operating conditions, AC characteristics, and handling restrictions.
| Typical propagation delay (tpd) | 4.3 ns |
|---|---|
| Supply voltage range (Vcc opr) | 2 V ~ 5.5 V |
| Quiescent supply current (Icc) | 2 pA (max) |
| Input tolerance | 5 V tolerant |
| Maximum power dissipation (Pp) | 50 mW |
| Package weight | 0.001 g (typ.) |
The typical propagation delay is 4.3 ns.
It operates from 2 V to 5.5 V.
The maximum power dissipation is 50 mW.
The quiescent supply current is up to 2 pA.
