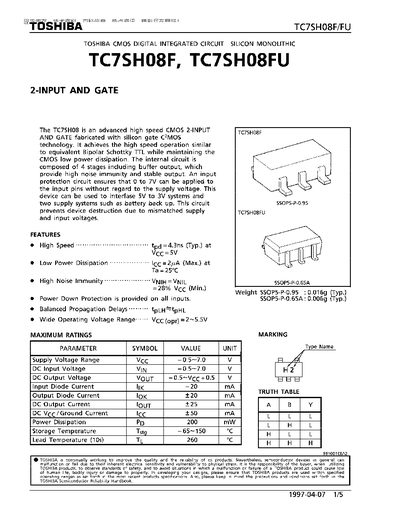

The TC7SH08F/FU is a high‑speed CMOS 2‑input AND gate fabricated with silicon‑gate C2‑MOS technology. It offers low power dissipation, high noise immunity, and a wide operating voltage range, making it suitable for interfacing 5 V and 3 V systems.
The datasheet provides detailed electrical characteristics, recommended operating conditions, package dimensions, and maximum ratings for designers who need precise performance data for this component.
| Supply Voltage Range (Maximum Rating) | -0.5 V to 7.0 V |
|---|---|
| Recommended Supply Voltage (Operating) | 2.0 V to 5.5 V |
| Output Voltage Range | -0.5 V to VCC+0.5 V |
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C to 150 °C |
The recommended supply voltage is 2.0 V to 5.5 V.
The device can dissipate up to 200 mW.
It can be stored from –65 °C up to 150 °C.
