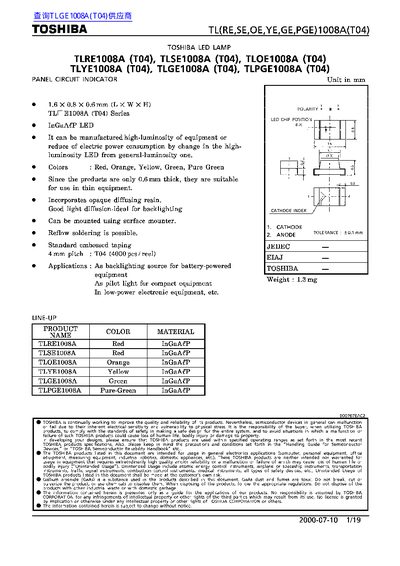

The TL series LED lamps (TLRE1008A, TLSE1008A, TLOE1008A, TLYE1008A, TLGE1008A, TLPGE1008A) are thin, high‑luminosity devices intended for backlighting and pilot‑light applications in compact equipment. They are available in several colors and are designed for surface‑mount assembly.
The handbook lists maximum ratings, forward voltage, forward current, luminous intensity, radiation patterns, reel dimensions, packing form and notation methods. It also includes safety and handling guidelines for the GaAs‑based devices.
| Forward Voltage (typ) | 1.9 V |
|---|---|
| Maximum Forward Current | 60 mA |
| Luminous Intensity (typ) | 27.2 cd |
| Color | Red, Orange, Yellow, Green, Pure Green |
| Package Size | 16 x 0.8 x 0.6 mm |
The maximum forward current is 60 mA.
The LEDs are offered in Red, Orange, Yellow, Green, and Pure Green.
Each reel contains 4 000 devices.
They are packed with silica gel and sealed in an aluminum pack.
