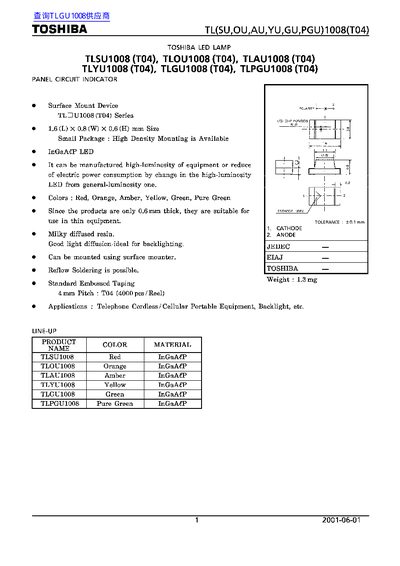

The TL series LED lamps from Toshiba are surface‑mount devices available in six colors (Red, Orange, Amber, Yellow, Green, Pure Green) and a compact 1.6 × 0.8 × 0.6 mm package, suitable for thin equipment and backlighting applications. They feature high‑luminosity InGaAlP chips and a thin 0.6 mm profile for efficient power consumption.
The document lists maximum ratings, optical and electrical characteristics, luminous intensity, radiation patterns, and packaging information such as 4000 devices per reel and 20 000 devices per carton. It also includes usage restrictions and handling guidelines for safety and reliability.
| Forward Current (Ip) | 25 mA |
|---|---|
| Forward Voltage (Vp) | 4 V |
| Power (Pp) | 60 mW |
| Package Size | 1.6 × 0.8 × 0.6 mm |
| Weight | 1.3 mg |
| Devices per Reel | 4000 |
The TL series LEDs are offered in Red, Orange, Amber, Yellow, Green, and Pure Green.
Each LED in the series has a maximum forward current of 25 mA.
Each reel contains 4000 devices.
The LED package is 0.6 mm thick.
