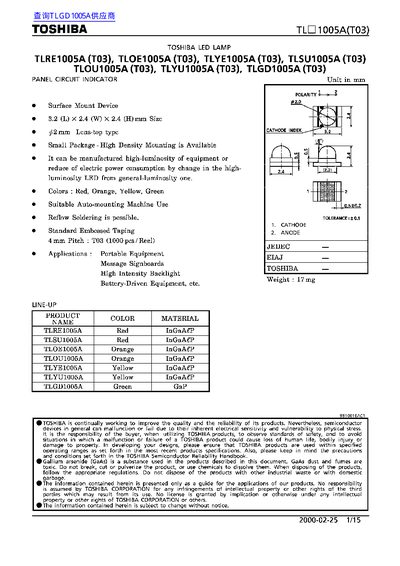

Toshiba TL1005A (T03) LED Lamp Datasheet
The Toshiba TL1005A (T03) series comprises high‑luminosity LED lamps available in red, orange, yellow and green colors. The handbook provides electrical, optical and mechanical data for each part number (TLRE1005A, TLSU1005A, TLOE1005A, TLOU1005A, TLYE1005A, TLYU1005A, TLGD1005A).
Key information includes forward voltage, maximum forward current, luminous intensity, wavelength ranges, package dimensions, and packaging formats such as reel and carton quantities. Safety and handling notes for gallium arsenide devices are also included.
Toshiba T03 specifications
| Typical forward voltage (TLRE1005A) | 1.85 V |
|---|---|
| Typical luminous intensity (TLRE1005A) | 450 mcd |
| Package size | 2.4 mm × 2.4 mm |
| Available colors | Red, Orange, Yellow, Green |
All Toshiba T03 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical forward voltage of the TLRE1005A LED?
The typical forward voltage of TLRE1005A is 1.85 V.
How many devices are packed on each reel?
Each reel contains 1 000 devices.
What storage temperature is recommended for the LED device?
The device should be stored at 5 °C to 30 °C.
From: TOSHIBA TLS1005A(T03)/TLG1005A(T03)/TLPG1005A(T03) Manual
What is the recommended baking condition before soldering?
Bake the device at 60 °C for at least 12 hours in a dry atmosphere.
From: TOSHIBA TLS1005A(T03)/TLG1005A(T03)/TLPG1005A(T03) Manual
