Key facts
- Brand
- Toshiba
- Model
- T05
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-01
Start here

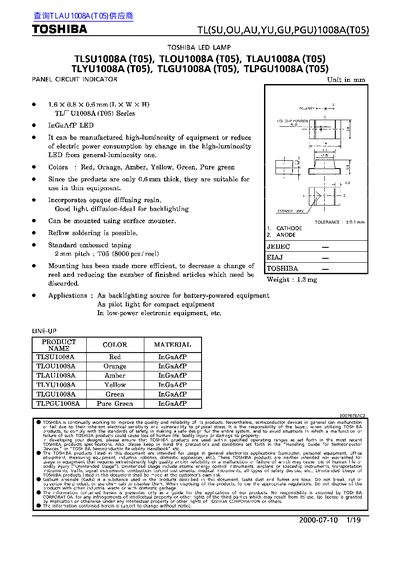

TOSHIBA TLSU1008A(T05) TLOU1008A(T05) TLAU1008A(T05) TLYU1008A(T05) TLGU1008A(T05) TLPGU1008A(T05) handbook
Datasheet 19 pages · 510 KB · EN
The TLSU1008A series LED lamps are thin (0.6 mm) surface‑mount devices offered in six colors for backlighting, pilot lights, and other low‑power electronic applications. They use InGaAlP chips and incorporate an opaque diffusing resin for good light diffusion.
The document lists electrical characteristics such as forward voltage and current, optical data like peak emission wavelength, mechanical dimensions, and packaging information including reel and carton quantities. Safety and handling notes are also included.
Toshiba T05 specifications
| Maximum Forward Current (mA) TLRE1008A | 60 |
|---|---|
| Maximum Forward Current (mA) TLSE1008A | 60 |
| Luminous Intensity (typ) TLRE1008A | 70 mcd |
| Devices per Reel | 8000 |
| Packing Method | Silica‑gel sealed aluminum pack |
All Toshiba T05 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum forward current for TLRE1008A?
The maximum forward current for TLRE1008A is 60 mA.
How many devices are packed per reel for the TL1008A series?
Each reel contains 8 000 devices.
