SN54HC86, SN74HC86 are quadruple 2-input exclusive-OR gates with a wide operating voltage range of 2V to 6V. They can drive up to 10 LSTTL loads, have low power consumption, strong output drive capability, and low input current.
The SN54HC86 and SN74HC86 devices contain four independent 2‑input exclusive‑OR gates. They operate from a 2 V to 6 V supply, draw as little as 20 µA of supply current, and can drive up to ten LSTTL loads per output. Typical propagation delay is about 10 ns and the devices feature low input current (≈1 µA) and a continuous output current capability of ±25 mA.

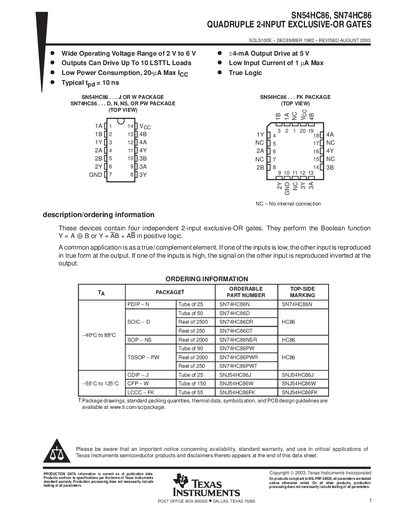

The datasheet provides detailed electrical characteristics, recommended operating conditions, switching performance, and mechanical data for various package types (PDIP, SOIC, TSSOP, etc.). Ordering information, package drawings, tape‑and‑reel dimensions, and an important notice about warranty and usage restrictions are also included. Additional product information is available on TI’s website.
| Supply voltage range | 2 V to 6 V |
|---|---|
| Output drive capability | Up to 10 LSTTL loads |
| Supply current (ICC) | 20 µA max |
| Input current | 1 µA max |
| Continuous output current (IO) | ±25 mA |
| Typical propagation delay (tpd) | 10 ns |
The devices operate from 2 V up to 6 V.
Each output can drive up to ten LSTTL loads.
Typical propagation delay is about 10 ns.
The maximum input current is 1 µA.
