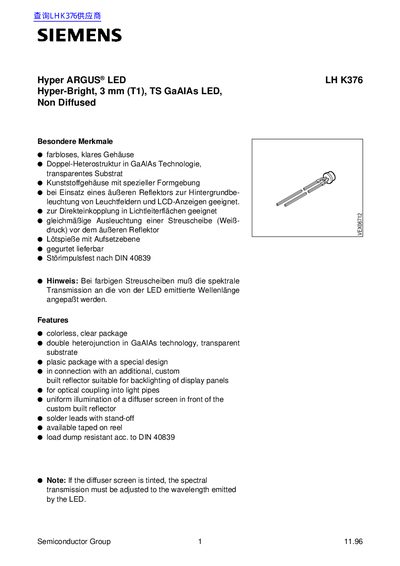

This document describes the features and characteristics of Semiconductor Group 1 11.96 Hyper ARGUS® LED Hyper-Bright, 3 mm (T1), TS GaAIAs LED, Non Diffused LH K376 G, including its color, package, technological features, and applicable areas.
The LH K376 is a hyper‑bright 3 mm GaAlAs LED offered by Siemens. It features a colorless, clear package with a double heterojunction and a transparent substrate, suitable for back‑lighting display panels and optical coupling into light pipes.
The document lists detailed electrical and optical parameters, including forward voltage, reverse voltage, maximum forward current, spectral data, temperature ranges, and mechanical dimensions, enabling designers to evaluate the component for various lighting applications. This manual is written in German.
| Peak emission wavelength | 660 nm |
|---|---|
| Dominant wavelength | 645 nm |
| Forward voltage (typ.) | 1.85 V |
| Reverse voltage | 3 V |
| Maximum forward current | 50 mA |
| Surge (pulse) current | 0.5 A |
| Power dissipation | 130 mW |
| Thermal resistance | 500 K/W |
| Operating temperature range | -55 °C to +100 °C |
| Package weight | 0.2 g |
The peak emission wavelength is 660 nm.
The maximum forward current is 50 mA.
The reverse voltage rating is 3 V.
It operates from –55 °C up to +100 °C.
