Start here

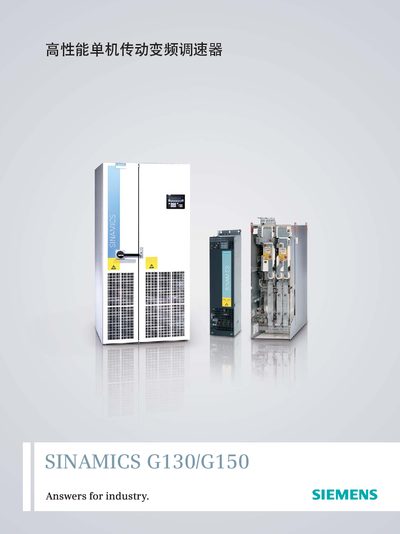

Siemens G130/G150 User Manual
This manual describes the SINAMICS G130 and G150 variable frequency drives, covering their wide power and voltage ranges, modular design, and application fields such as pumps, fans, compressors and conveyors. It explains the pulse‑edge modulation technology that delivers 100 % input voltage to the motor without harmonic losses.
The document also details the optional accessories, control panels, cooling system, noise performance, and service procedures, including modular maintenance and quick‑start configuration using the STARTER software and AOP30 panel. This manual is written in Chinese.
Siemens G130 specifications
| Power range | 0.12 kW ~ 120 MW |
|---|---|
| Voltage range | 220 V ~ 10 kV |
| Typical noise level | < 69 dB(A) |
| Maximum overload current | 1.60 × rated current |
| Standard cabinet width | 400 mm ~ 2400 mm |
| IP protection levels | IP20 ~ IP54 |
Source: Siemens G130/G150 User Manual
All Siemens G130 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage range does the SINAMICS G130 support?
The G130 can operate from 220 V up to 10 kV.
What is the overload capability of the drives?
The drives can handle up to 1.60 times the rated current as overload.
Which SINAMICS drive series are covered in this catalog?
The catalog covers the SINAMICS G130, G150, and S120 variable frequency drive series.
What selection and diagnostic tools does Siemens provide for these drives?
Siemens offers the SIZER selection configuration tool, the STARTER debugging and diagnostic tool, and the Drive ES engineering system.
What voltage range does the SINAMICS G130/G150 support?
It supports a wide voltage range from 220 V up to 10 kV.
From: Siemens G130/G150 Frequency Converter Implementation Manual
What is the typical noise level of the G130/G150 drive?
The typical noise level is less than 69 dB(A).
From: Siemens G130/G150 Frequency Converter Implementation Manual
