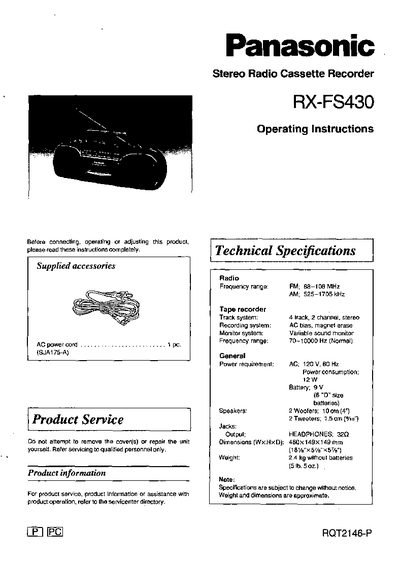

This document provides the operating instructions for the Panasonic RX-FS430 Stereo Radio Cassette Recorder. It details the supplied accessories, safety precautions, and installation requirements, including proper placement and power source connections.
| FM Frequency range | 88-108 MHz |
|---|---|
| AM Frequency range | 525-1705 kHz |
| Tape recorder Track system | 4 track, 2 channel, stereo |
| Recording system | AC bias, magnet erase |
| Monitor system | Variable sound monitor |
| Frequency range (Monitor) | 70~10000 Hz |
| Power requirement | AC 120 V, 60 Hz |
| Battery requirement | 9 V (6 "D" size batteries) |
| Speakers | 2 Woofers; 10 cm (4") 2 Tweeters; 1.5m (%e") |
| Dimensions | 460x 149x149 mm |
| Weight | 2.4 kg without batteries |
The unit requires six "D" size (R20/LR20 or equivalent) batteries.
Yes, connect the included AC power cord to the household AC outlet and the AC socket of the unit.
Speakers are automatically cut off when the headphones are connected.
Press the STOP/EJECT button to stop the playback.
