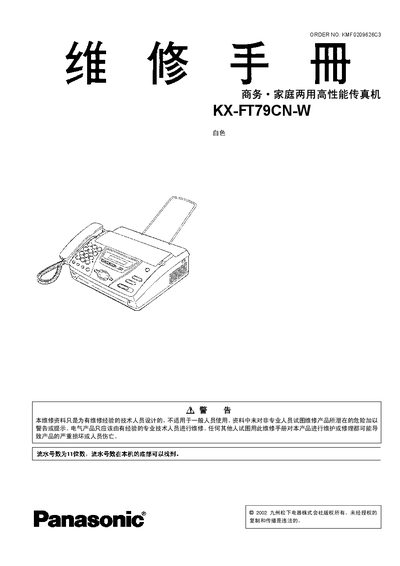

This repair manual is for Panasonic KX-FT79CN-W fax machine, introduces product features, specifications, troubleshooting methods, etc.
This service manual provides detailed instructions for qualified technicians to safely service the Panasonic KX-FT79CN-W business and home fax machine. It includes safety precautions, insulation resistance testing, battery handling, AC power guidelines, and step‑by‑step disassembly procedures.
Technical specifications, optional accessories, wiring diagrams, control panel locations, and fault‑diagnosis guides are also included, enabling efficient maintenance and repair of the unit. This manual is written in Japanese.
| Scanning resolution (horizontal) | 8 pels/mm |
|---|---|
| Scanning resolution (vertical) | 3.85 lines/mm |
| Scan speed (standard mode) | ≈15 seconds per page |
| Power supply | AC 220‑240 V, 50/60 Hz |
| Standby power consumption | ≈4.5 W |
| Maximum power consumption (copying 100% black) | ≈125 W |
| Dimensions (H × W × D) | 117 mm × 347 mm × 270 mm |
| Weight | ≈2.6 kg |
| Operating temperature range | 5 °C – 35 °C |
| Battery type | CR2032 lithium |
| Modem speeds | 9600 / 7200 / 4800 / 2400 bps |
Only the manufacturer‑recommended CR2032 lithium battery should be used, and it must be installed with the correct polarity.
The unit consumes approximately 4.5 W in standby mode.
The machine measures 117 mm × 347 mm × 270 mm and weighs about 2.6 kg.
