Key facts
- Brand
- Panasonic
- Model
- DMC-TS20
- Category
- Digital cameras
- Industry
- Electronics
- Documents
- 4
- Languages
- EN · ES · ZH
- Last added
- 2012-08-10
Start here

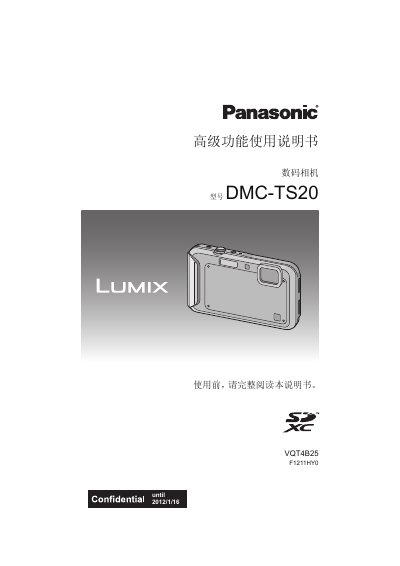

Panasonic DMC-TS20 Digital Camera User Manual
This manual provides step‑by‑step instructions for using the Panasonic DMC‑TS20 digital camera, covering safety precautions, basic functions, shooting modes, playback options and connection to other devices. It also includes detailed guidance on waterproof handling, battery charging, memory card usage and menu settings.
Special sections address underwater operation limits, cleaning and maintenance procedures, and troubleshooting tips to keep the camera performing reliably in harsh environments. This manual is written in Chinese.
Panasonic DMC-TS20 specifications
| Effective Pixels | 16,100,000 |
|---|---|
| Image Sensor | 1/2.33" CCD, 16,600,000 total pixels |
| Lens | 4x optical zoom, 4.5‑18 mm (f/3.9‑f/5.7) |
| Power Consumption (shooting) | 1.0 W |
| Power Consumption (playback) | 0.6 W |
| Weight (with battery & card) | ≈142 g |
| Waterproof Rating | IPX8 (up to 5 m for 60 min) |
| Shock Resistance | MIL‑STD‑810F Method 516.5‑Shock |
| Battery Voltage | DC 5.1 V |
| Battery Capacity | 3.6 V / 680 mAh |
All Panasonic DMC-TS20 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the correct procedure for removing condensation from the lens?
Turn off the power and open the side door in a place with constant ambient temperature away from high temperatures, humidity, sand, and dust.
From: Panasonic DMC-TS20 Digital Camera Basic Owner's Manual
What is the maximum temperature the battery pack should not be heated above?
Do not heat the battery pack above 60 °C (140 °F).
From: Panasonic DMC-TS20 Digital Camera Basic Owner's Manual
What should I do if the lens fogs up?
Turn off the power and open the side door in a place with constant ambient temperature, away from heat and humidity. The fog will disappear naturally in 10 minutes to 2 hours.
Can I use the battery below 0°C?
No, the battery cannot be recharged at temperatures below 0°C (32°F). The CHARGE indicator will blink when charging is not possible.
What is the maximum depth and time the camera can be used underwater?
The camera can operate in water up to 5 m deep for a maximum of 60 minutes.
What type of battery does the DMC‑TS20 use?
It uses a Panasonic DMW‑BCK7GK lithium‑ion battery pack.
