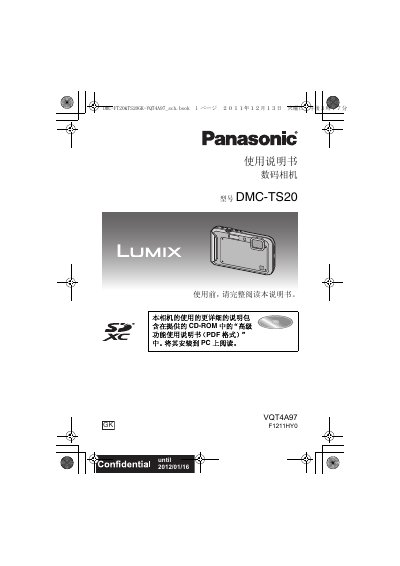

User manual, introduces the camera's usage methods, precautions, etc.
The Panasonic DMC-TS20 user manual covers essential safety precautions, including waterproof, dust‑proof and shock‑resistance guidelines, as well as proper handling of the battery, charger and accessories. It also explains how to insert and remove memory cards, operate the camera functions, and install the optional software provided on the CD‑ROM.
Technical specifications such as effective pixel count, sensor type, lens zoom range, power consumption, LCD details, weight, and environmental ratings (IPX8 waterproof and MIL‑STD‑810F shock) are listed, helping users understand the camera’s capabilities and limits. This manual is written in Chinese.
| Effective Pixels | 16,100,000 |
|---|---|
| Image Sensor | 1/2.33" CCD, 16,600,000 total pixels |
| Lens | 4x optical zoom, 4.5‑18 mm (f/3.9‑f/5.7) |
| Power Consumption (shooting) | 1.0 W |
| Power Consumption (playback) | 0.6 W |
| Weight (with battery & card) | ≈142 g |
| Waterproof Rating | IPX8 (up to 5 m for 60 min) |
| Shock Resistance | MIL‑STD‑810F Method 516.5‑Shock |
| Battery Voltage | DC 5.1 V |
| Battery Capacity | 3.6 V / 680 mAh |
The camera can operate in water up to 5 m deep for a maximum of 60 minutes.
It uses a Panasonic DMW‑BCK7GK lithium‑ion battery pack.
Ensure the inner side of the side cover is free of foreign objects before sealing it.
