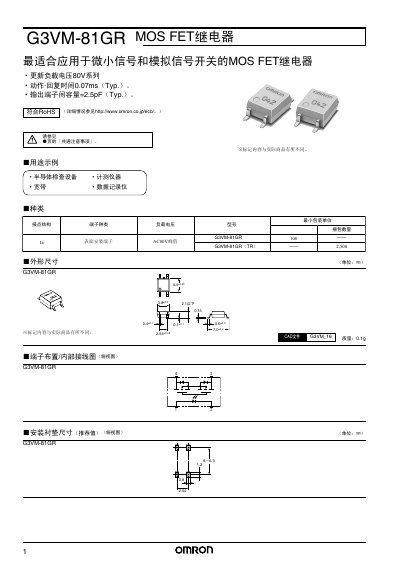

G3VM-81GR is a MOS FET relay from OMRON. It is suitable for applications such as micro signal and analog signal switching. It features an operating voltage of 80V, a switching time of 0.07ms (Typ.), and an output terminal capacitance of 2.5pF (Typ.).
The G3VM-81GR is an Omron MOS FET relay designed for switching very small signals and analog signals. It offers a compact package, low actuation time, and low output capacitance, making it suitable for precision applications.
Key specifications include an 80 V maximum load voltage, a typical actuation/release time of 0.07 ms, and an output capacitance of 2.5 pF. The sheet also lists absolute maximum ratings, recommended operating conditions, and mechanical dimensions for proper mounting. This manual is written in Chinese.
| Maximum Load Voltage | 80 V |
|---|---|
| Typical Actuation/Release Time | 0.07 ms (typ) |
| Output Capacitance (typ) | 2.5 pF |
The maximum load voltage is 80 V.
Typical actuation and release time is 0.07 ms.
The typical output capacitance is 2.5 pF.
