This document is the user manual of OMRON G3VM-351G photoelectric relay. It introduces the features, working principles, usage methods, electrical parameters and other information of the product.

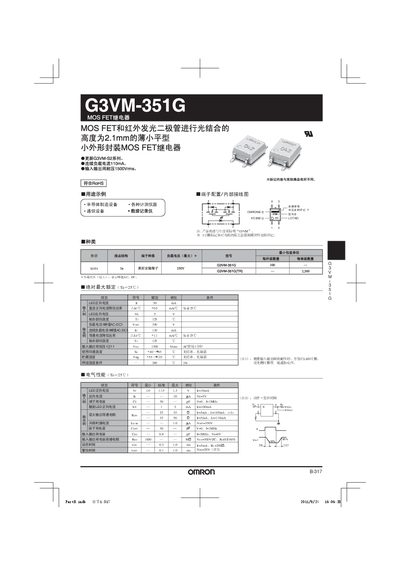

This datasheet describes the Omron G3VM-351G MOS FET relay, a compact solid‑state relay with a 2.1 mm low‑profile package. It includes key electrical parameters such as load current, isolation voltage, and LED drive requirements.
The document also lists recommended operating conditions, temperature limits, and performance curves to ensure reliable switching and reset behavior in various applications. This manual is written in Chinese.
| Continuous load current | 110 mA |
|---|---|
| Input‑output isolation voltage | 1500 V rms |
| LED forward current | 30 mA |
| LED forward voltage | 1.15 V |
| Peak load voltage (AC/DC) | 350 V |
| Operating temperature (minimum) | -65 °C |
The relay can handle a continuous load current of 110 mA.
The isolation voltage between input and output is rated at 1500 V rms.
The relay can switch a peak load voltage of up to 350 V (AC or DC).
