The document introduces a MOS FET product called G3VM-201G. It has surface mount terminals, a voltage of 200V, a leakage current of 1nA, and an insulation voltage of 1500Vrms. The product is suitable for applications such as AC/DC conversion circuits and LED drivers.

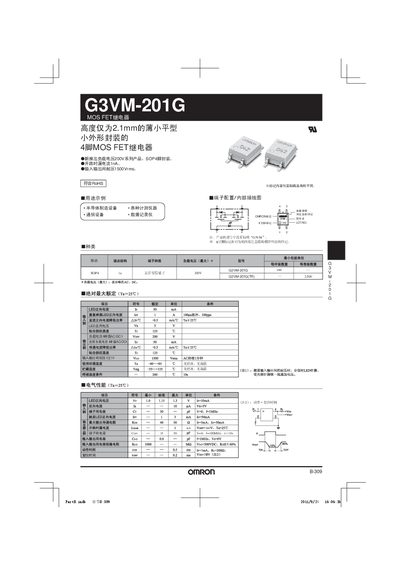

This document describes the Omron G3VM-201G MOS FET relay, a low‑profile 4‑pin solid‑state relay with a 2.1 mm height. It includes electrical characteristics, mechanical dimensions, and compliance information such as RoHS.
The manual also lists recommended operating conditions, including load voltage limits, isolation voltage, LED drive parameters, and environmental temperature ranges, to ensure reliable switching performance. This manual is written in Chinese.
| Maximum load voltage (peak AC/DC) | 200 V |
|---|---|
| Input‑output isolation voltage | 1500 Vrms |
| Maximum continuous load current | 50 mA |
The relay can handle a peak load voltage of 200 V for both AC and DC.
The isolation voltage between input and output is rated at 1500 Vrms.
