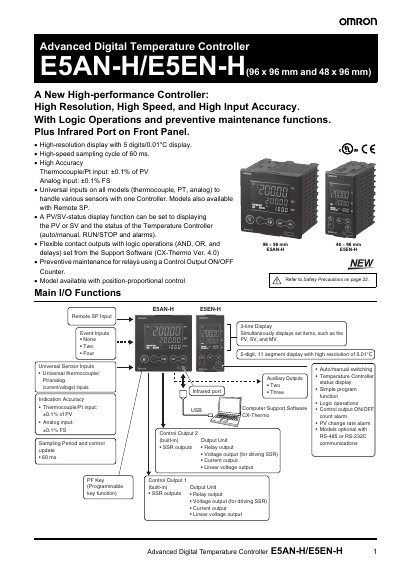

The E5AN-H/E5EN-H is OMRON's new generation of high-performance temperature controllers that features high resolution, high speed, and high input accuracy. In addition, the controller provides logic operations and preventive maintenance functions, and has an infrared port on the front panel.
The Advanced Digital Temperature Controller E5AN-H/E5EN-H provides high‑resolution temperature measurement with a 5‑digit, 0.01 °C display and a fast 60 ms sampling cycle. It offers high‑accuracy thermocouple/PT inputs (±0.1 % of PV) and analog inputs (±0.1 % FS) and supports universal sensor connections for thermocouple, PT and analog signals.
The controller includes flexible I/O functions such as relay, voltage (for SSR), current and linear voltage outputs, as well as optional RS‑485 or RS‑232C communication. Logic operations (AND, OR, delays) can be configured via the CX‑Thermo software, and an infrared port on the front panel provides additional interfacing options.
| Display resolution | 5 digits / 0.01 °C |
|---|---|
| Sampling cycle | 60 ms |
| Thermocouple/PT input accuracy | ±0.1 % of PV |
| Analog input accuracy | ±0.1 % FS |
| Universal sensor inputs | Thermocouple, PT, analog (current/voltage) |
| Output types | Relay, voltage (for SSR), current, linear voltage |
| Communication options | RS‑485 or RS‑232C |
| Infrared port | Front‑panel infrared port |
It provides a 5‑digit display with a resolution of 0.01 °C.
The controller samples at a cycle of 60 ms.
It accepts universal thermocouple, PT and analog (current/voltage) inputs.
