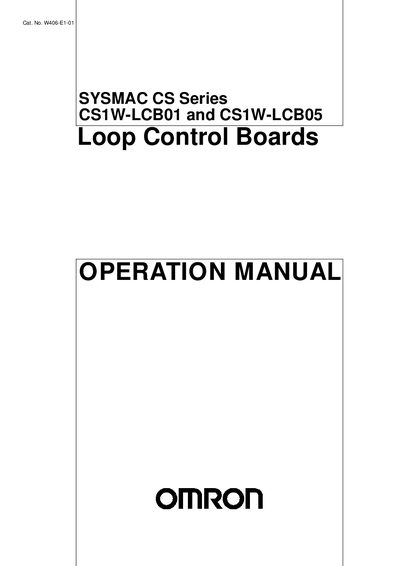

Introduces the usage of CS1W-LCB01 and CS1W-LCB05 Loop Control Boards.
This operation manual describes the installation, wiring, and use of the CS1W-LCB01 and CS1W-LCB05 Loop Control Boards, which are inner‑board modules for CS‑series PLC CPU units. It explains the system configuration, part names and functions, and the data‑exchange mechanism with the CPU and SCADA software.
Key sections cover component identification, installation steps, the control mechanism, example applications, FINS command usage, and detailed troubleshooting procedures. Appendices provide programming examples for the Step Ladder and Sequence Table blocks.
| Current consumption | 220 mA at 5 V DC (plus 150 mA with NT‑AL001‑E Link Adapter) |
|---|---|
| External dimensions | 34.5 W × 130 H × 100.5 D mm |
| Weight | 100 g max. |
| LED indicators | 3 LEDs: RUN, ready, and communications port send/receive |
| Super‑capacitor backup life | 24 hours at 25 °C |
| Influence on CPU unit cycle time | 0.3 to 0.8 ms |
The board draws 220 mA at 5 V DC, increasing by 150 mA when an NT‑AL001‑E Link Adapter is used.
Data is exchanged via words in the Auxiliary Area of the CPU unit, covering operation status, error inputs, start commands, and function‑block data.
