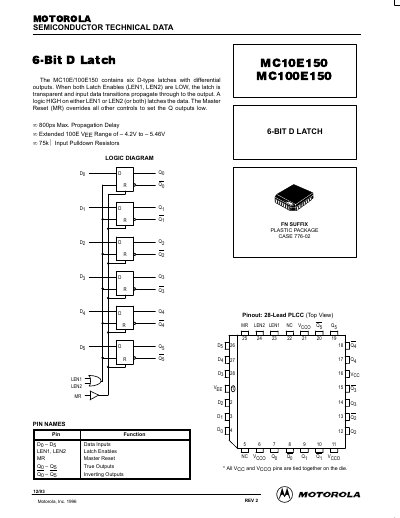

Motorola MC10E150/MC100E150 Datasheet
Datasheet 5 pages · 65 KB · EN
This document provides technical data for the MC10E150 and MC100E150, a family of 6-bit D-type latches featuring differential outputs. The device includes six latches controlled by Latch Enables (LEN1, LEN2) and a Master Reset (MR), with propagation delays as low as 800ps maximum.
Read onlineMotorola MC10E150 specifications
| Number of Latches | 6 |
|---|---|
| Max Propagation Delay | 800ps |
| Operating Voltage Range (100E) | -4.2V to -5.46V |
| Input Pulldown Resistors | 75kQ |
| Package Type | 28-Lead PLCC |
All Motorola MC10E150 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the Master Reset?
The Master Reset overrides all other controls to set the Q outputs low.
When are the latches transparent?
Latches are transparent when both Latch Enables (LEN1, LEN2) are LOW.
What is the function of the Master Reset (MR)?
The Master Reset overrides all other controls to set the Q outputs low.
When are the latches transparent?
The latch is transparent when both Latch Enables (LEN1, LEN2) are LOW.
