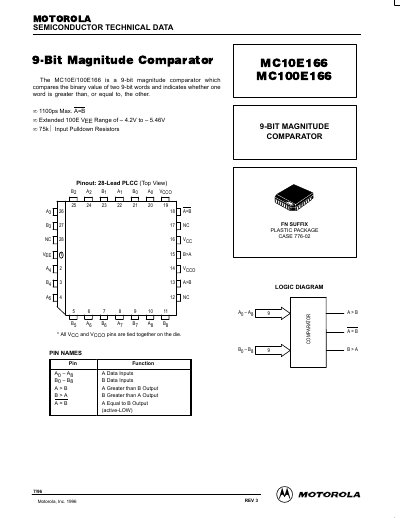

Motorola MC10E166/MC100E166 9-Bit Magnitude Comparator Datasheet
This document is a technical datasheet for the Motorola MC10E166 and MC100E166, which are 9-bit magnitude comparators. These integrated circuits compare the binary value of two 9-bit words to indicate if one is greater than or equal to the other. The device is available in a 28-lead PLCC package.
Read onlineMotorola MC10E166 specifications
| Word Size | 9-bit |
|---|---|
| Package Type | 28-Lead PLCC |
| Max A=B Delay | 1100ps |
| Input Pulldown Resistors | 75kQ |
Source: Motorola MC10E166/MC100E166 9-Bit Magnitude Comparator Datasheet
All Motorola MC10E166 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the A=B output?
The A=B output indicates when the two input words are equal to each other.
From: Motorola MC10E166/MC100E166 9-Bit Magnitude Comparator Datasheet
What is the maximum propagation delay for the A=B output?
The maximum propagation delay to the A=B output is 1100ps.
From: Motorola MC10E166/MC100E166 9-Bit Magnitude Comparator Datasheet
What is the function of the MC10E/100E166?
It compares the binary value of two 9-bit words and indicates whether one word is greater than, or equal to, the other.
From: Motorola MC10E166/MC100E166 9-Bit Magnitude Comparator Datasheet
What are the voltage ranges for the Extended 100E version?
The extended voltage range for the MC100E series is from -4.2V to -5.46V.
From: Motorola MC10E166/MC100E166 9-Bit Magnitude Comparator Datasheet
