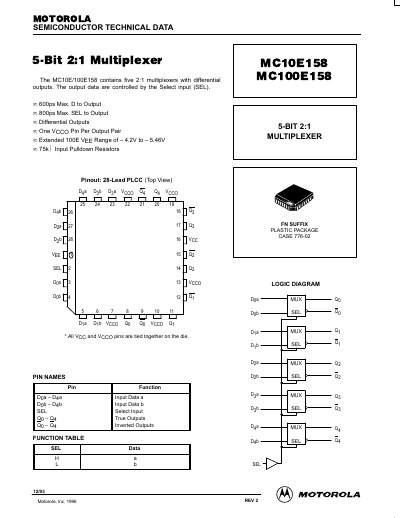

Motorola MC10E158/MC100E158 5-Bit 2:1 Multiplexer Datasheet
This document is a technical datasheet for the Motorola MC10E158 and MC100E158 integrated circuits. These devices contain five 2:1 multiplexers with differential outputs, where the output data are controlled by a Select input (SEL). The datasheet specifies that the maximum delay from data to output is 600ps and from SEL to output is 800ps.
Read onlineMotorola MC10E158 specifications
| Number of Multiplexers | Five 2:1 multiplexers |
|---|---|
| Output Type | Differential Outputs |
| Max Data to Output Delay | 600ps |
| Max SEL to Output Delay | 800ps |
| Package Type | 28-Lead PLCC |
| Input Pulldown Resistors | 75kQ |
| Operating Temperature | 25°C, 85°C |
Source: Motorola MC10E158/MC100E158 5-Bit 2:1 Multiplexer Datasheet
All Motorola MC10E158 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum delay from data to output?
The maximum delay from data to output is 600ps.
From: Motorola MC10E158/MC100E158 5-Bit 2:1 Multiplexer Datasheet
What is the maximum delay from the Select input to the output?
The maximum delay from the Select input to the output is 800ps.
From: Motorola MC10E158/MC100E158 5-Bit 2:1 Multiplexer Datasheet
What is the VEE range for the MC100E series?
The extended VEE range for the 100E series is -4.2V to -5.46V.
From: Motorola MC10E158/MC100E158 5-Bit Multiplexer Datasheet
How are the outputs controlled?
The output data are controlled by the Select input (SEL).
From: Motorola MC10E158/MC100E158 5-Bit Multiplexer Datasheet
